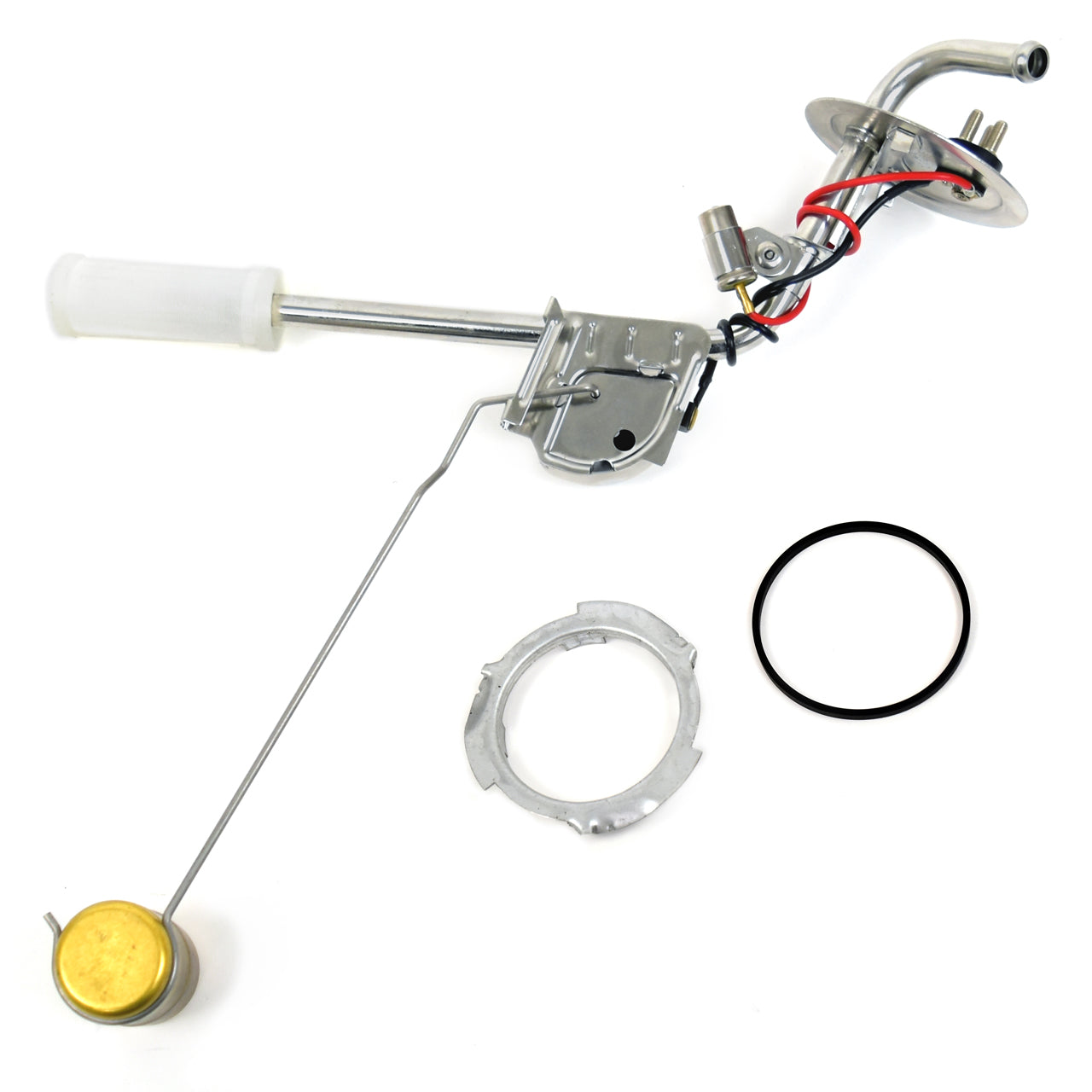

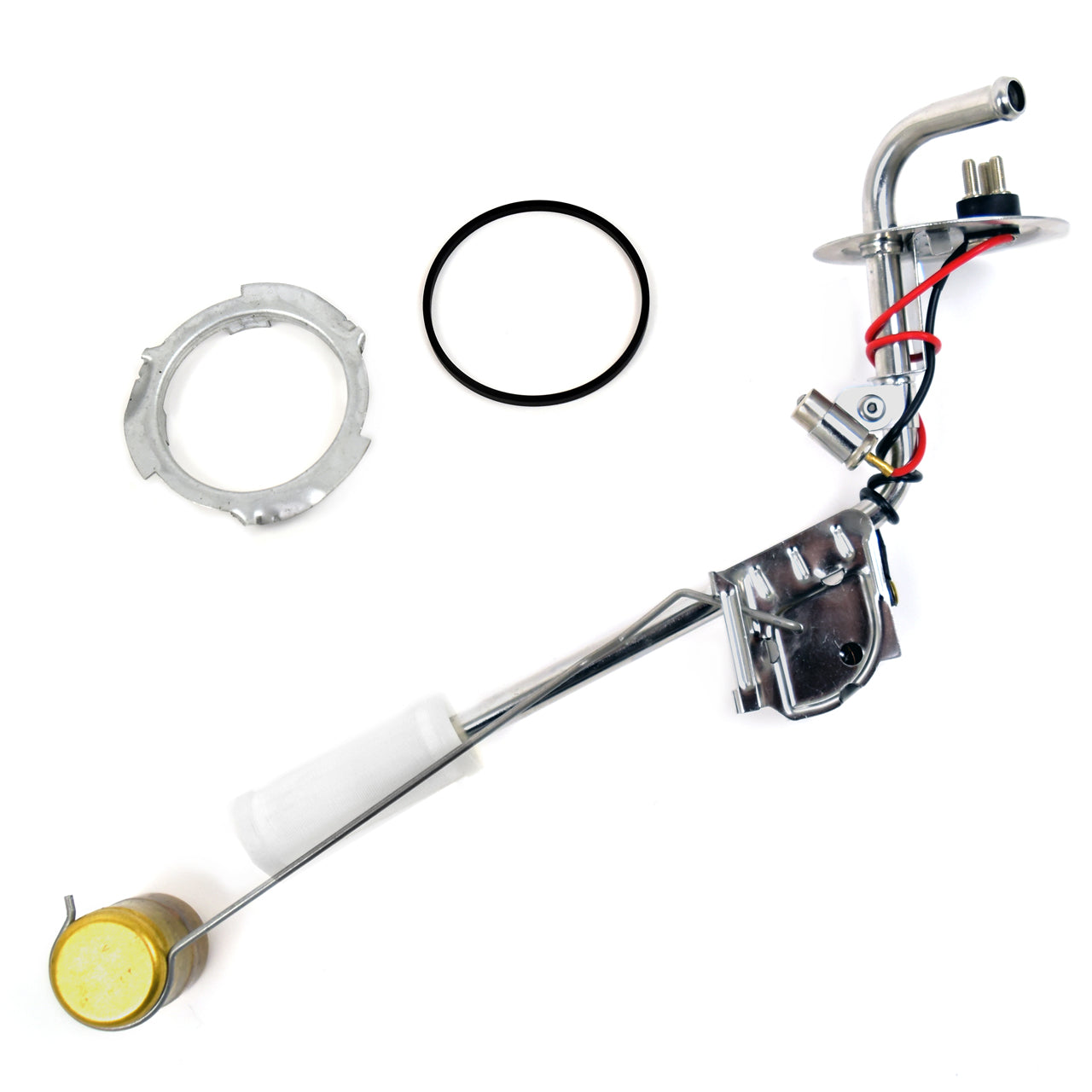

Stainless Fuel Sending Unit with Low Level Sensor | 3/8" Outlet | 1970 Ford Mustang

Restore accurate fuel-level readings and proper low-fuel warning operation on your 1970 Ford Mustang with this stainless fuel sending unit featuring an integrated low-level sensor. Designed as a direct-fit replacement inside the fuel tank, this unit includes a 3/8 inch fuel outlet and the additional sensor required by Mustangs equipped with the factory-style Convenience Package low-fuel warning system.

Important: This sending unit is intended for 1970 Mustangs that have the Convenience Package warning system or a complete, compatible conversion using the proper indicator, wiring, relay or control components, and electrical connections. The integrated low-level sensor does not create a working warning light by itself. Mustangs equipped only with a standard fuel gauge normally use a sending unit without the low-fuel sensor.

• 1970 Mustang fitment: Designed for 1970 Ford Mustang fuel tank sending unit applications.


• For Convenience Package applications: Intended for Mustangs equipped with the factory-style warning system that includes a low-fuel indicator.


• Integrated low-level sensor: Provides the tank-side signal used to activate the low-fuel warning circuit when the fuel level reaches the system’s trigger point.


• Operates the standard fuel gauge: Measures fuel level and sends the corresponding signal to the dash fuel gauge.


• Requires matching warning-system components: The low-fuel feature requires the correct indicator, wiring, relay or control components, and related electrical connections already installed and functioning.


• Not required for standard applications: A Mustang with only a conventional fuel gauge and no low-fuel warning system normally uses a sender without the additional low-level sensor.


• 3/8 inch fuel outlet: Provides the fuel supply connection for compatible factory-style fuel system configurations.


• Direct-fit in-tank installation: Mounts in the factory-style sending unit location inside the fuel tank.


• Stainless steel construction: Offers a durable replacement for a worn, corroded, leaking, damaged, or inaccurate original sending unit.



This stainless fuel sending unit performs two separate functions in a properly equipped 1970 Mustang. It operates the standard dashboard fuel gauge by measuring the amount of fuel in the tank, and its additional low-level sensor supplies the signal used by the Convenience Package low-fuel warning circuit.

When the fuel level reaches the low-level sensor’s activation point, the sender works with the vehicle’s existing warning-system wiring and electrical components to illuminate the low-fuel indicator. Because this is only one part of the system, installing the sender in a Mustang that does not have the matching indicator, wiring, relay or control components will not create a functioning low-fuel warning feature.

This unit is the correct style to consider when replacing a failed sender in a Mustang originally equipped with the Convenience Package, restoring a factory-style low-fuel warning system, or completing a properly configured Convenience Package conversion. For a vehicle equipped only with the standard fuel gauge, select the appropriate sending unit without the low-level warning sensor.

Built from stainless steel and designed to mount inside the fuel tank, this direct-fit replacement is suitable for fuel tank service, inaccurate gauge diagnosis, low-fuel warning repair, electrical restoration, or a complete classic Mustang fuel-system refresh. Before ordering, verify the vehicle’s original equipment and confirm that the complete low-fuel warning circuit is present and compatible.

Choose this sending unit for a 1970 Mustang equipped with the Convenience Package low-fuel warning system. For a standard Mustang without the low-fuel indicator and supporting electrical components, use a conventional sending unit without the low-level sensor.
