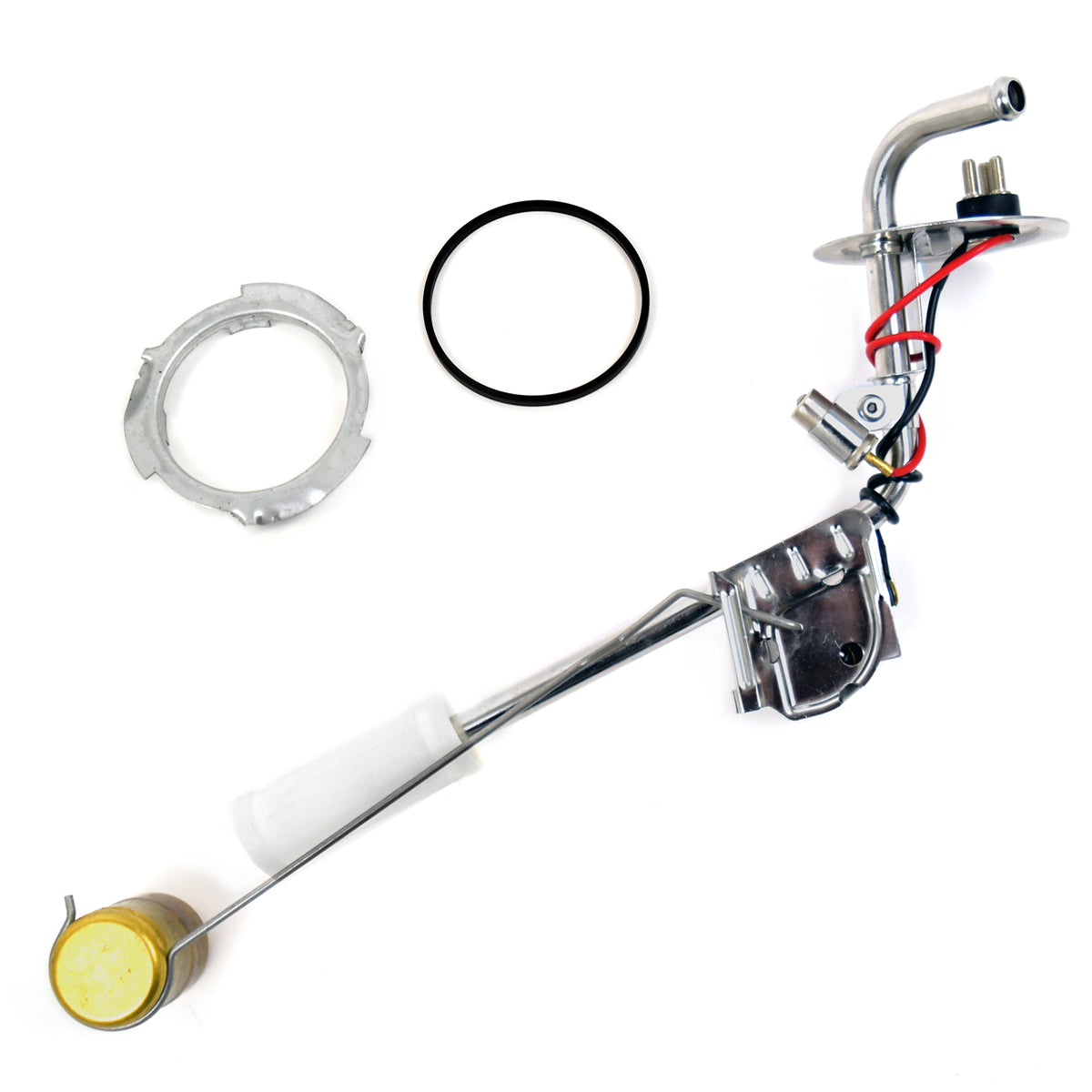

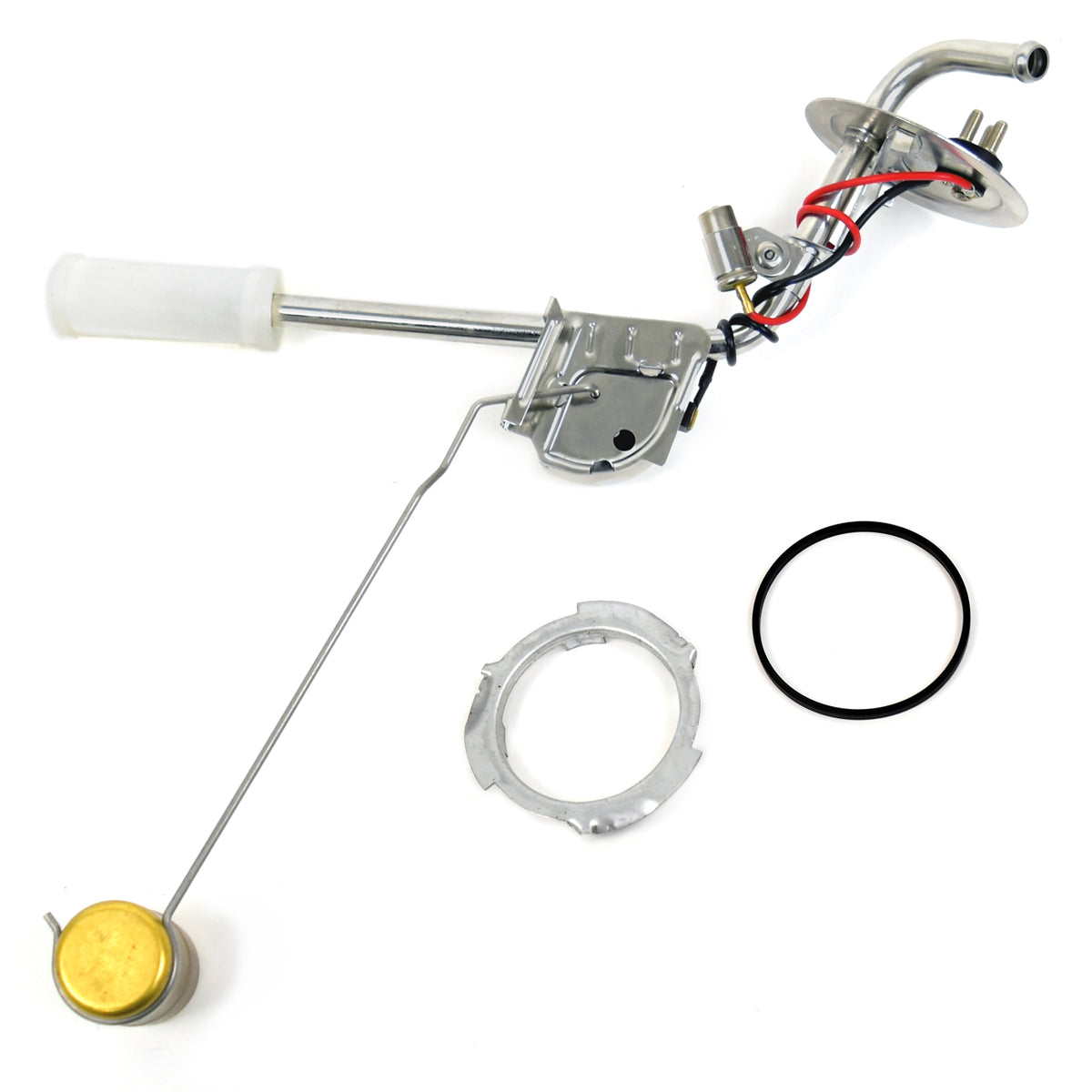

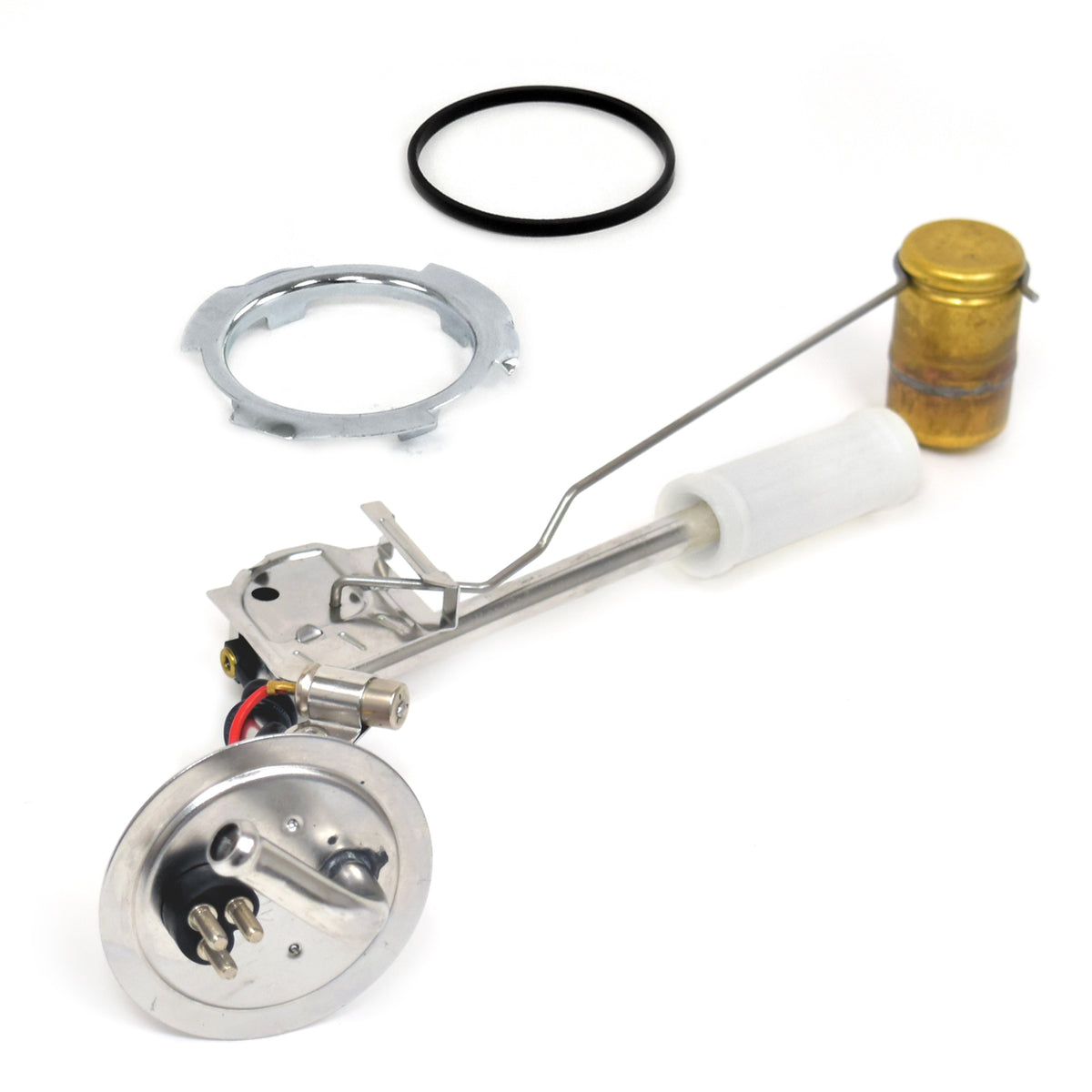

Stainless Fuel Sending Unit with Low Level Sensor | 3/8" Outlet | 1970 Mercury Cougar

Restore accurate fuel-level readings and proper low-fuel warning operation on your 1970 Mercury Cougar with this stainless fuel sending unit featuring an integrated low-level sensor. Designed as a direct-fit replacement inside the fuel tank, this unit includes a 3/8 inch fuel outlet and the additional sensor required by Cougars equipped with a compatible factory-style low-fuel warning system.

Important: This sending unit is intended for 1970 Mercury Cougars that have a compatible factory-style low-fuel warning system or a complete conversion using the proper indicator, wiring, relay or control components, and electrical connections. The integrated low-level sensor does not create a working warning light by itself. Cougars equipped only with a standard fuel gauge normally use a sending unit without the low-fuel sensor.

• 1970 Cougar Fitment: Designed for compatible 1970 Mercury Cougar fuel tank sending unit applications.


• For Low-Fuel Warning Applications: Intended for Cougars equipped with a compatible factory-style warning system that includes a low-fuel indicator.


• Integrated Low-Level Sensor: Provides the tank-side signal used to activate the low-fuel warning circuit when the fuel level reaches the system’s trigger point.


• Operates the Standard Fuel Gauge: Measures fuel level and sends the corresponding signal to the dashboard fuel gauge.


• Requires Matching Warning-System Components: The low-fuel feature requires the correct indicator, wiring, relay or control components, and related electrical connections already installed and functioning.


• Not Required for Standard Applications: A Cougar with only a conventional fuel gauge and no low-fuel warning system normally uses a sender without the additional low-level sensor.


• 3/8 Inch Fuel Outlet: Provides the fuel supply connection for compatible factory-style fuel system configurations.


• Direct-Fit In-Tank Installation: Mounts in the factory-style sending unit location inside the fuel tank.


• Stainless Steel Construction: Offers a durable replacement for a worn, corroded, leaking, damaged, or inaccurate original sending unit.



This stainless fuel sending unit performs two separate functions in a properly equipped 1970 Mercury Cougar. It operates the standard dashboard fuel gauge by measuring the amount of fuel in the tank, and its additional low-level sensor supplies the signal used by the compatible low-fuel warning circuit.

When the fuel level reaches the low-level sensor’s activation point, the sender works with the vehicle’s existing warning-system wiring and electrical components to illuminate the low-fuel indicator. Because this is only one part of the system, installing the sender in a Cougar that does not have the matching indicator, wiring, relay or control components will not create a functioning low-fuel warning feature.

This unit is the appropriate style to consider when replacing a failed sender in a Cougar originally equipped with a compatible low-fuel warning system, restoring a factory-style warning circuit, or completing a properly configured conversion. For a vehicle equipped only with the standard fuel gauge, select the appropriate sending unit without the low-level warning sensor.

Built from stainless steel and designed to mount inside the fuel tank, this direct-fit replacement is suitable for fuel tank service, inaccurate gauge diagnosis, low-fuel warning repair, electrical restoration, or a complete classic Cougar fuel-system refresh. Before ordering, verify the vehicle’s original equipment and confirm that the complete low-fuel warning circuit is present and compatible.

Choose this sending unit for a 1970 Mercury Cougar equipped with a compatible low-fuel warning system. For a standard Cougar without the low-fuel indicator and supporting electrical components, use a conventional sending unit without the low-level sensor.
