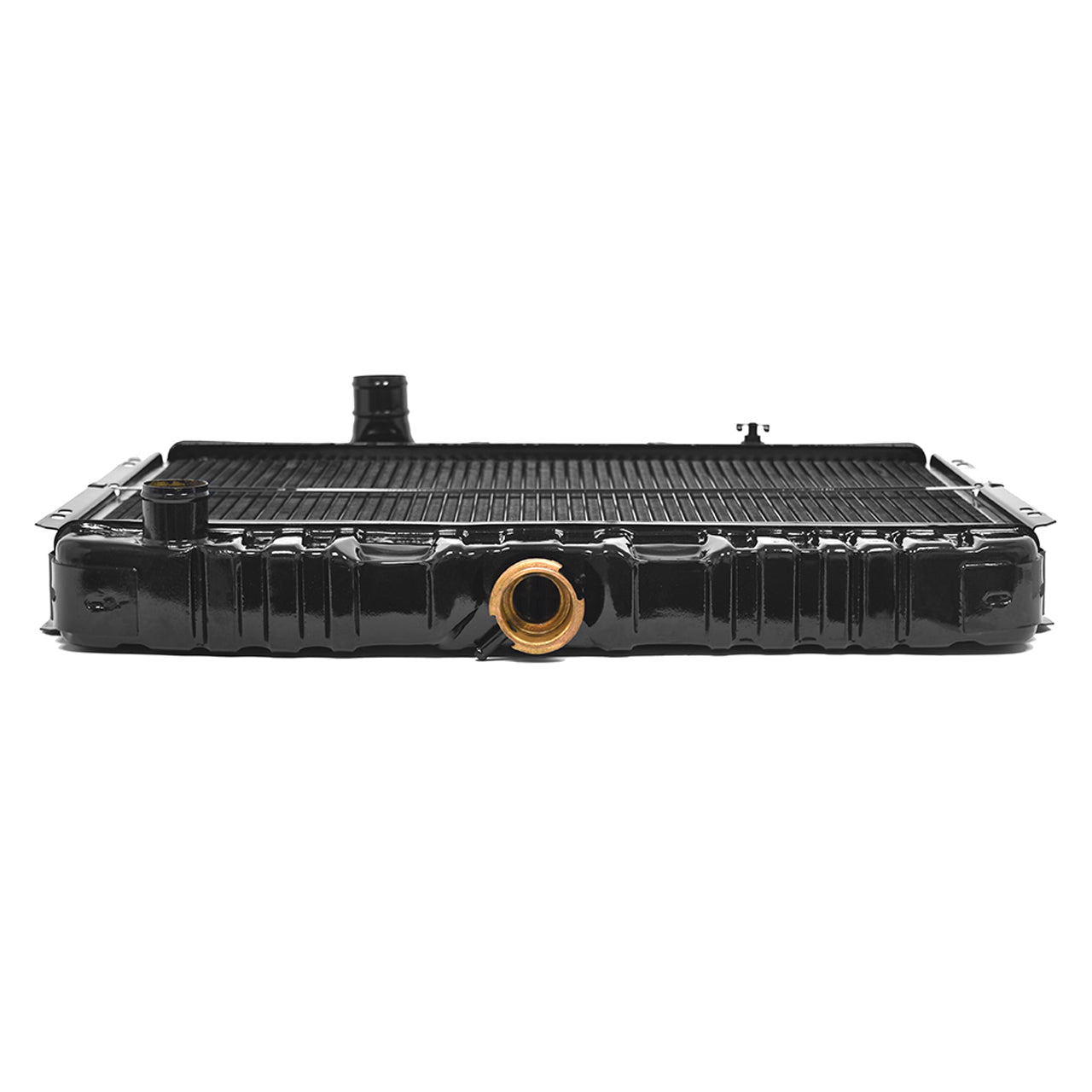

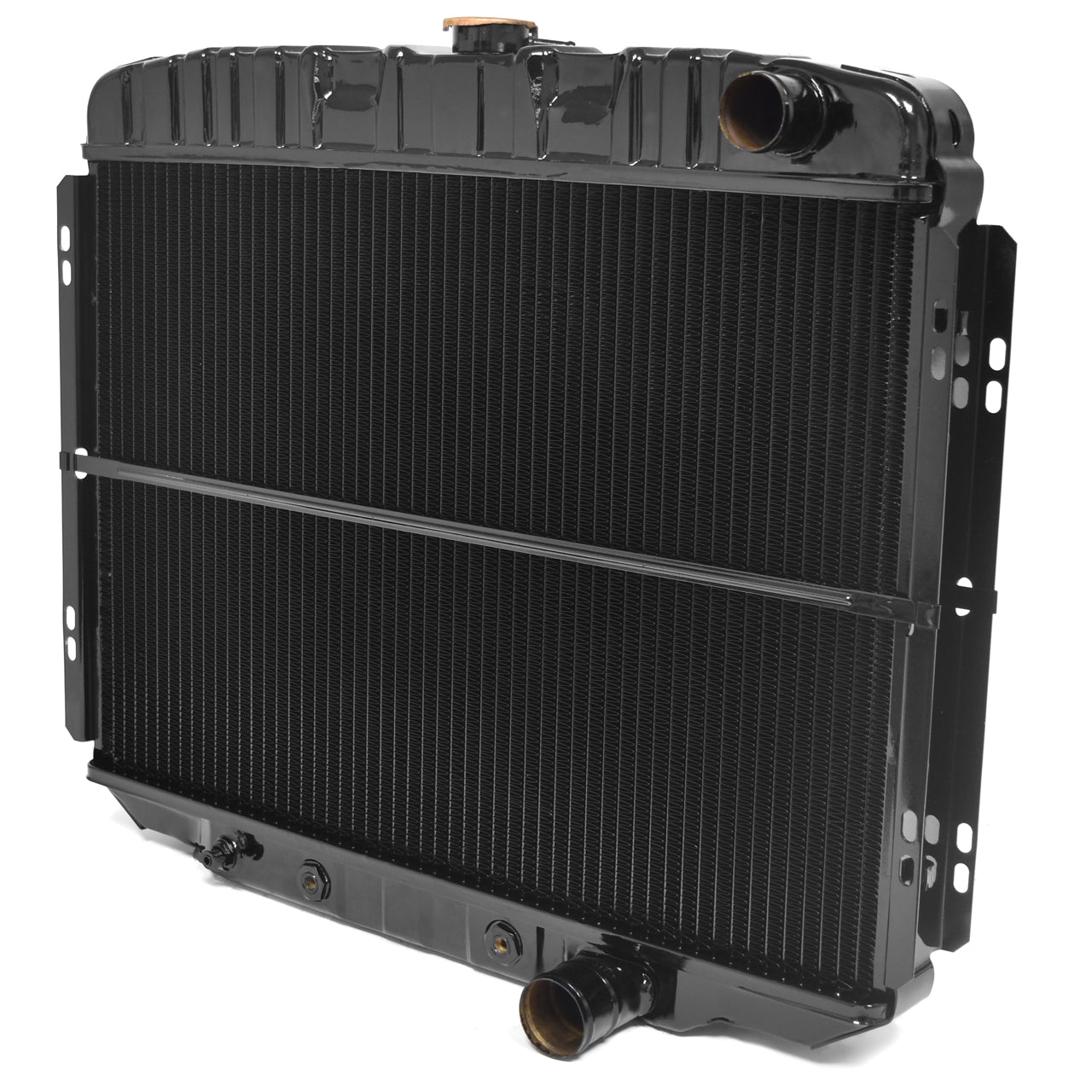

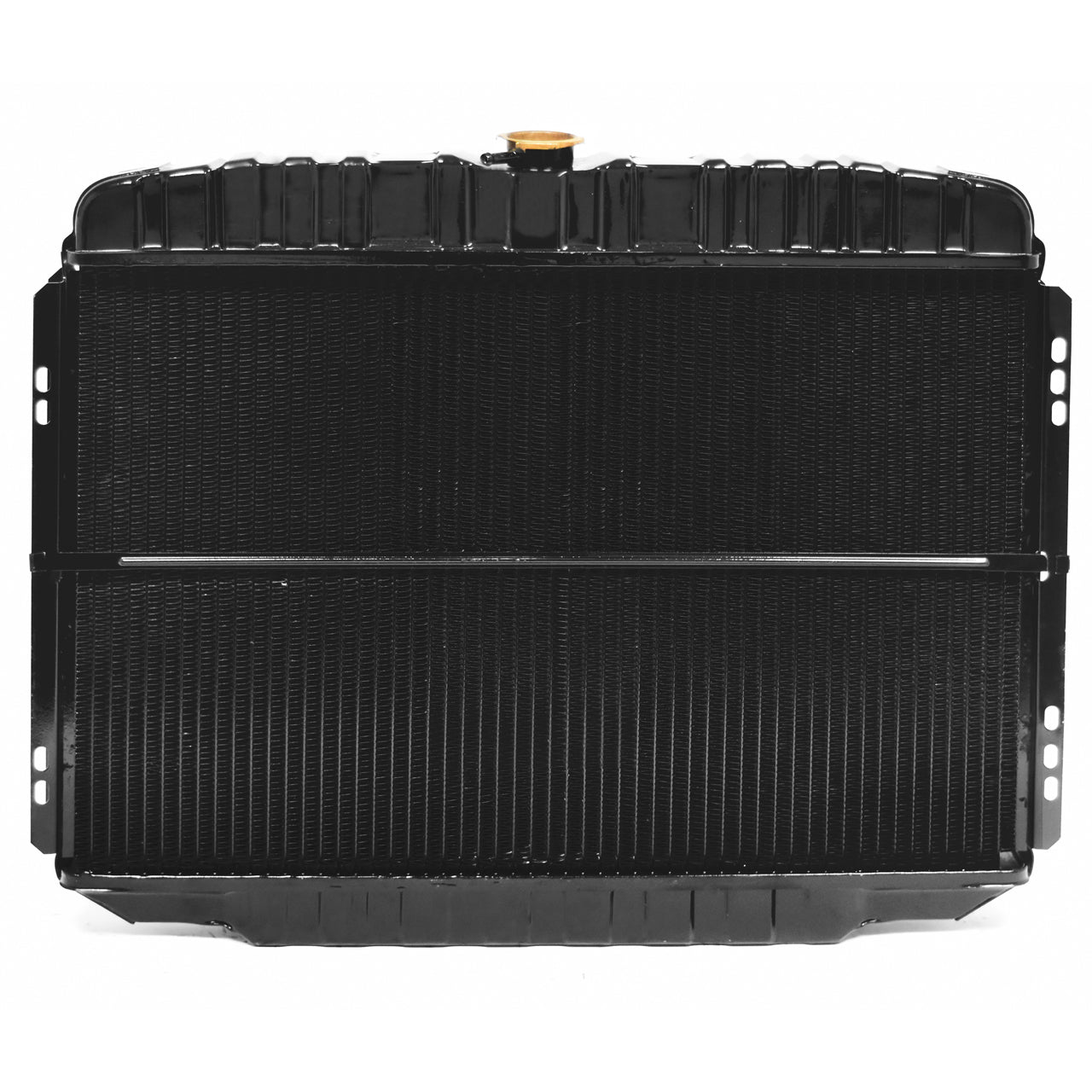

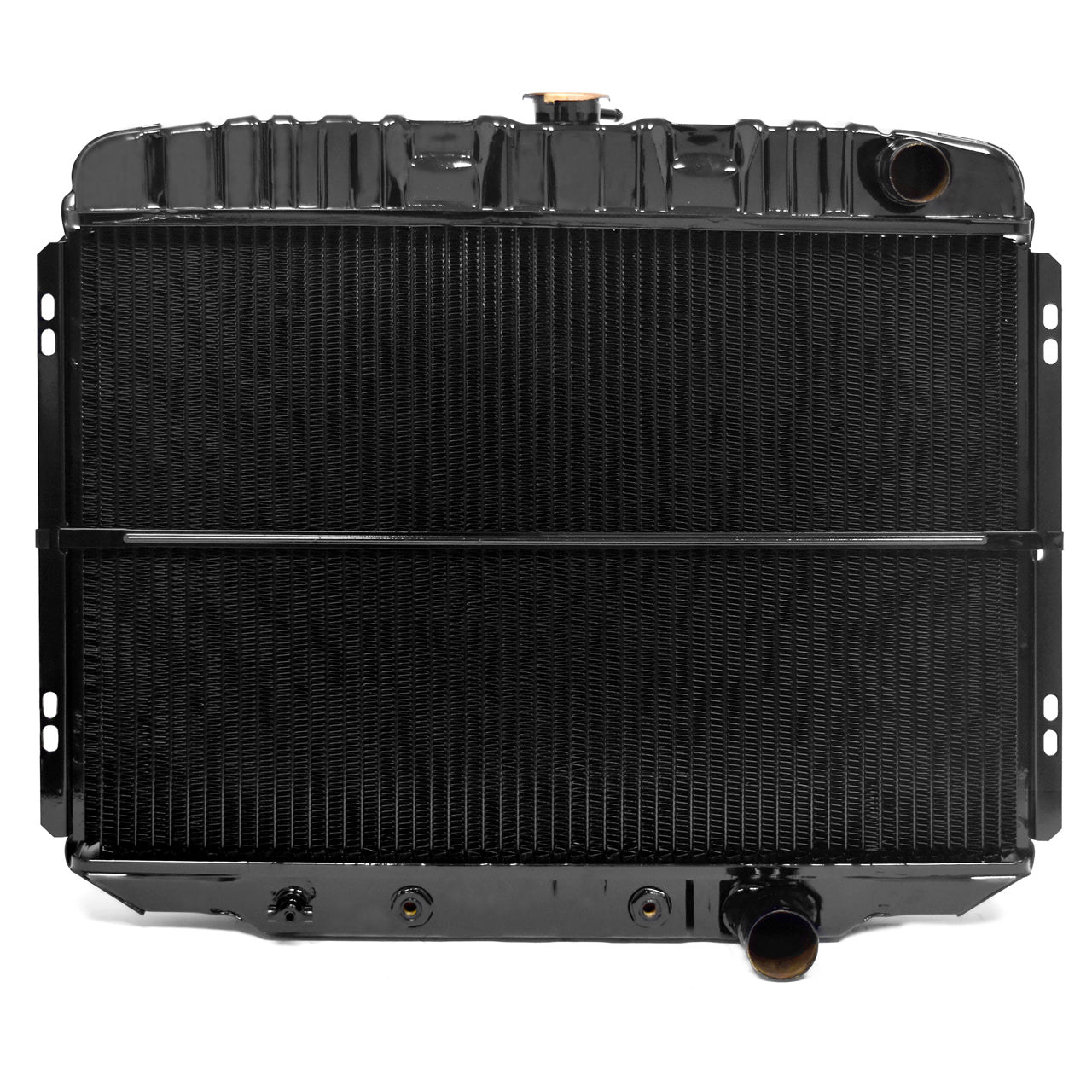

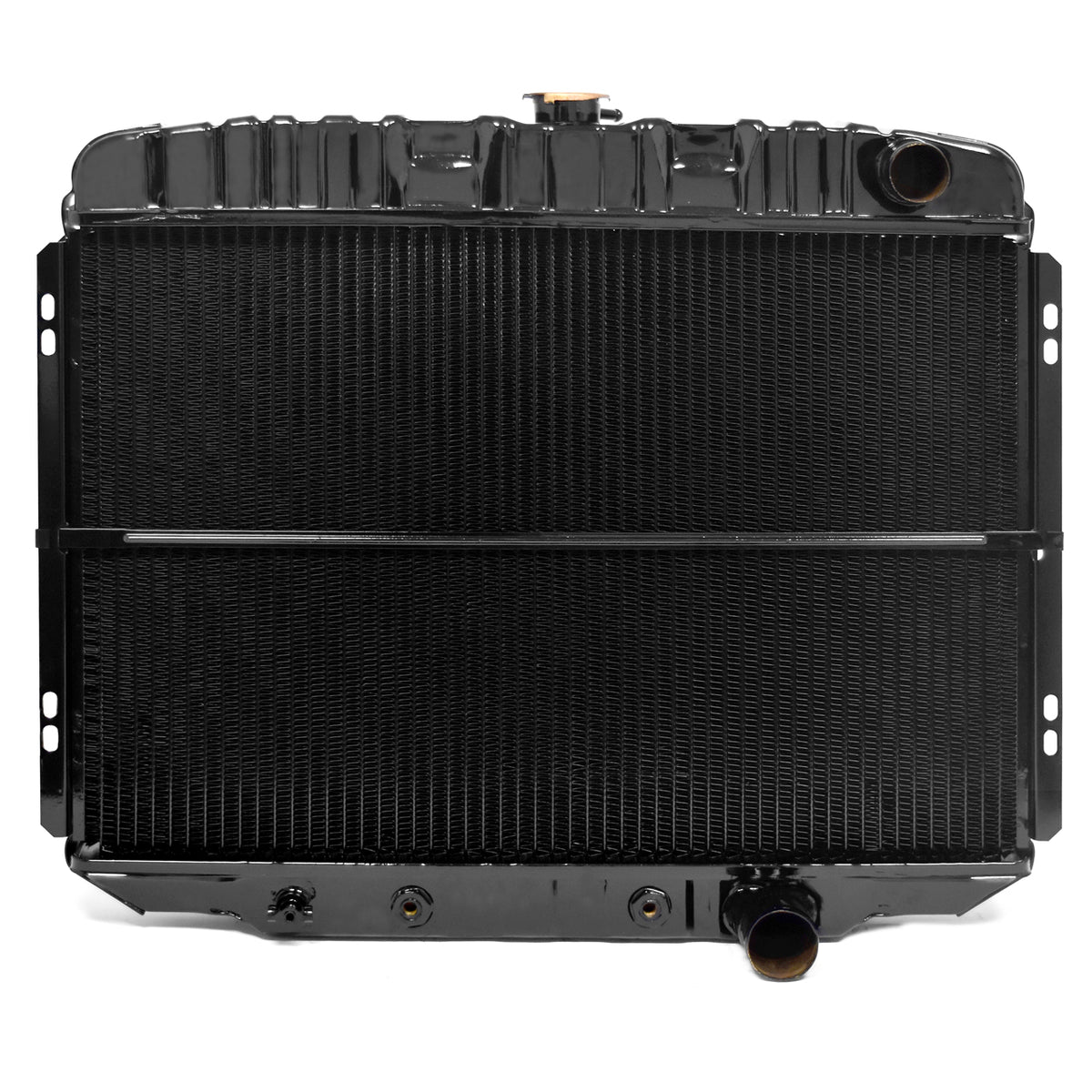

Upgrade your 1970 Ford Mustang with this 24-inch 3-row copper/brass radiator, designed for 302 and 351W V8 applications. Built with OE-type tanks for a clean factory-style appearance, it delivers dependable cooling performance while preserving the classic look and drivability of your Mustang project.
Fitment note: This radiator is for classic Mustangs with the driver-side water pump outlet as found on original 1970 Ford Mustangs with Small Block Ford engine.
-
Small-Block Mustang Cooling: Designed for 1970 Ford Mustangs equipped with 302 or 351W V8 engines.
-
3-Row Performance Design: Increased tube size and fin count help improve cooling capacity over tired original-style radiators.
-
24-Inch Radiator Fitment: Built for classic Mustang applications using the larger 24-inch radiator configuration.
-
Copper/Brass Construction: Traditional radiator materials provide proven heat transfer and classic restoration appeal.
-
OE-Type Tank Appearance: Factory-style tanks help keep your engine bay looking clean, correct, and period-inspired.
-

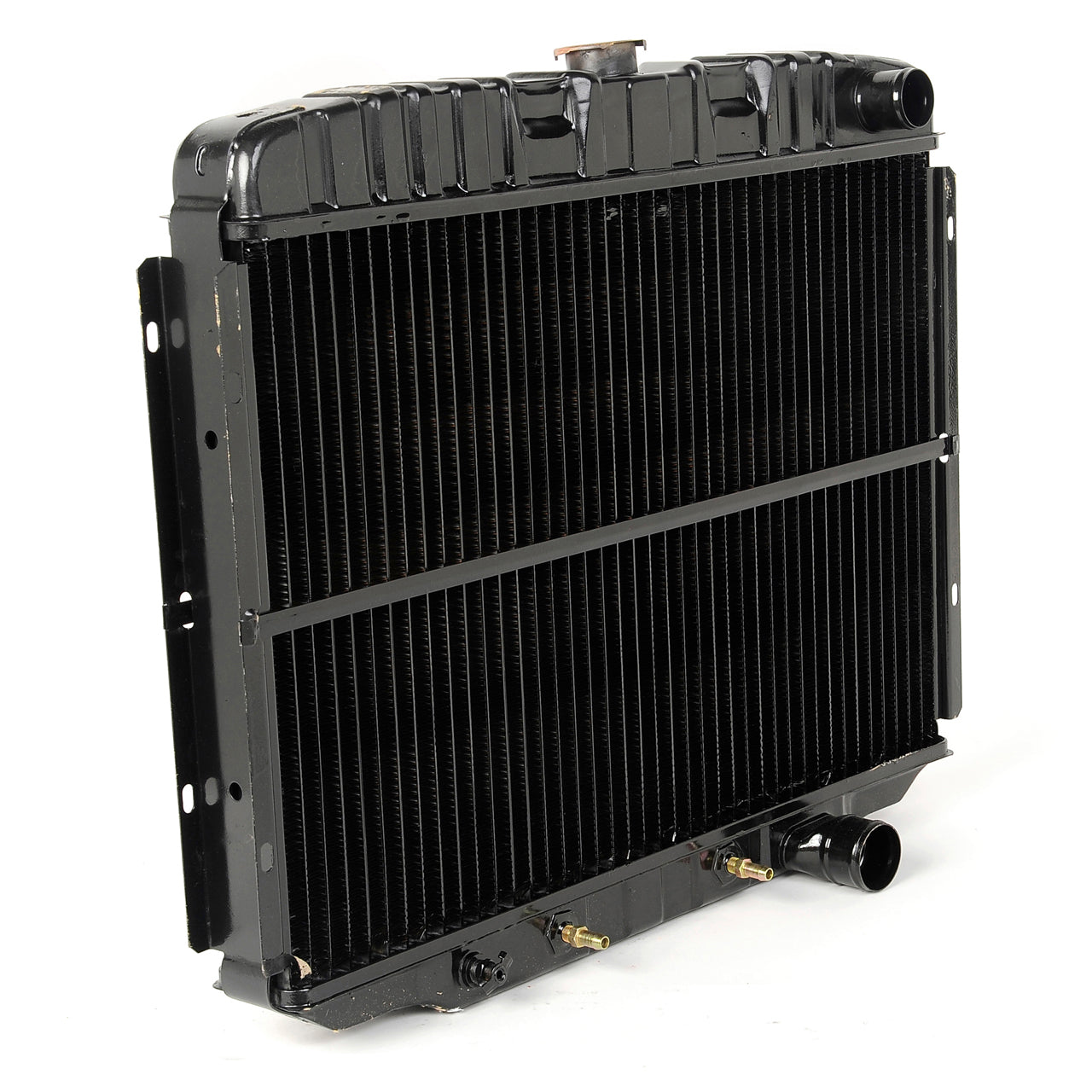

Transmission Cooler Ready: Includes transmission cooler inlet and outlet provisions for automatic transmission applications.
-
Flexible Connection Options: Supports adapter fittings for 5/16-inch flexible hose or 5/16-inch flared hardline setups.
-
Confident Direct Upgrade: Ideal for replacing a worn radiator while supporting reliable temperature control and drivability.
This 3-row copper/brass radiator is a dependable cooling upgrade for 1970 Mustang owners running a 302 or 351W V8. Its increased tube size and added fin capacity help improve heat transfer, making it a strong choice for restorations, weekend drivers, and street-driven classics that need reliable cooling without losing the original-style feel.
The OE-type tanks give this radiator a factory-inspired appearance that blends naturally into a classic Mustang engine bay, while the copper/brass construction maintains the traditional look many restorers prefer. Transmission cooler inlet and outlet provisions add compatibility for automatic transmission applications, with adapter fitting options for either 5/16-inch flexible hose or 5/16-inch flared tube hardline connections.
Keep your small-block Mustang cool with 3-row copper/brass performance, OE-style looks, and confident classic drivability.
| Product Fitment |
| Make |
Ford |
| Model |
Mustang |
| Year Range |
1970 |
| Engine Fitment |
302 / 351W V8 |
| Radiator Size |
24 inch |
| Application |
Small-block Mustang radiator upgrade or replacement |
| Product Specs |
| Product Type |
Radiator |
| Radiator Style |
Copper / Brass Radiator with OE-Type Tanks |
| Row Count |
3-Row |
| Core Size |
24 inch |
| Core Design |
3-row design with increased tube size and fin count |
| Material |
Copper / Brass |
| Tank Style |
OE-Type Tanks |
| Transmission Cooler Inlet/Outlet Thread Size |
1/8"-27 NPT Female |
| Adapter Fitting Option 1 |
1/8"-27 NPT Male to 5/16" Barbed End Male, for 5/16" Flexible Hose |
| Adapter Fitting Option 2 |
1/8"-27 NPT Male to 1/2"-20 Inverted Flare Female, for 5/16" Flared Tube Hardline |
| Dimensions |
29 in. L x 8 in. W x 25 in. H |
| Approximate Weight |
23.5 lb. |
