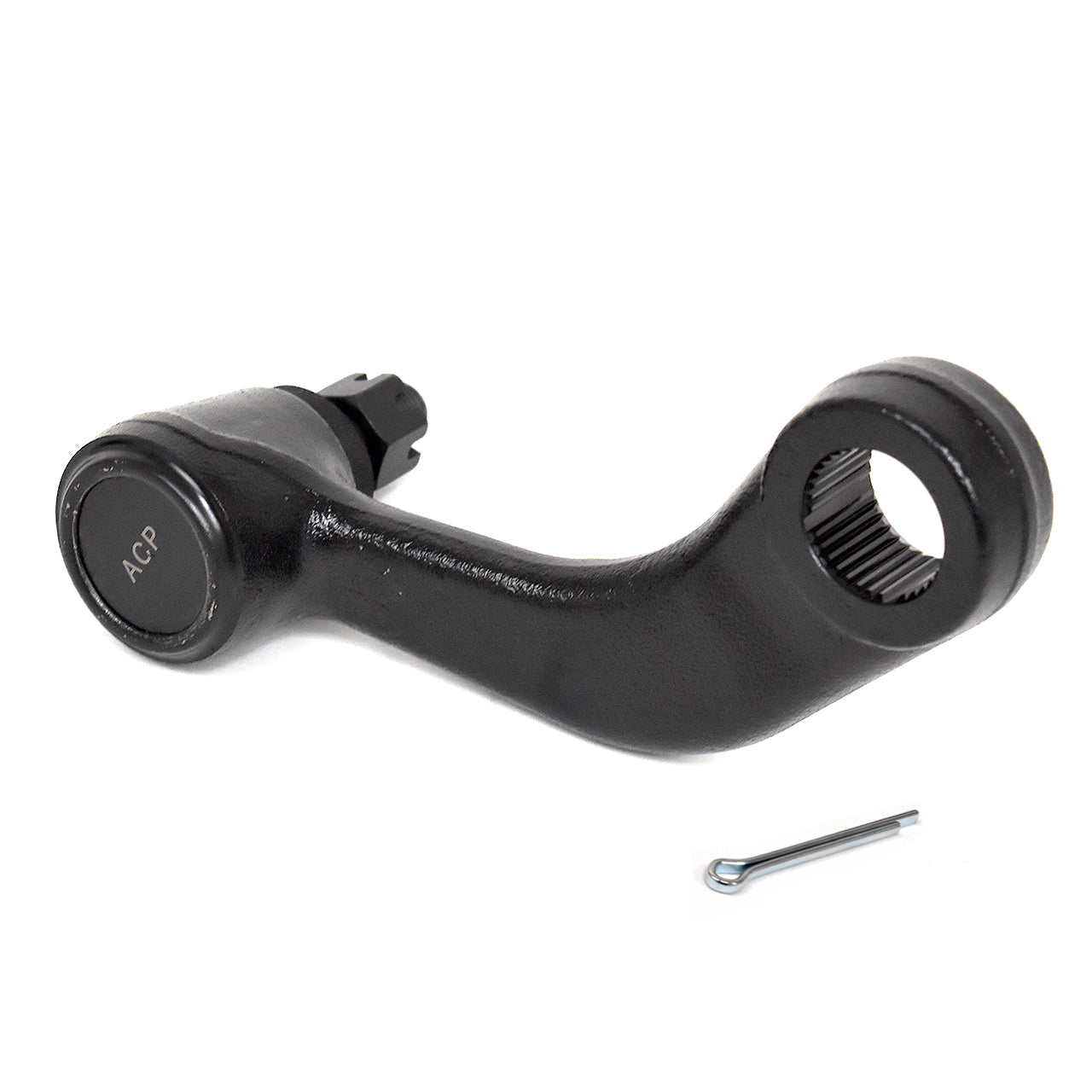

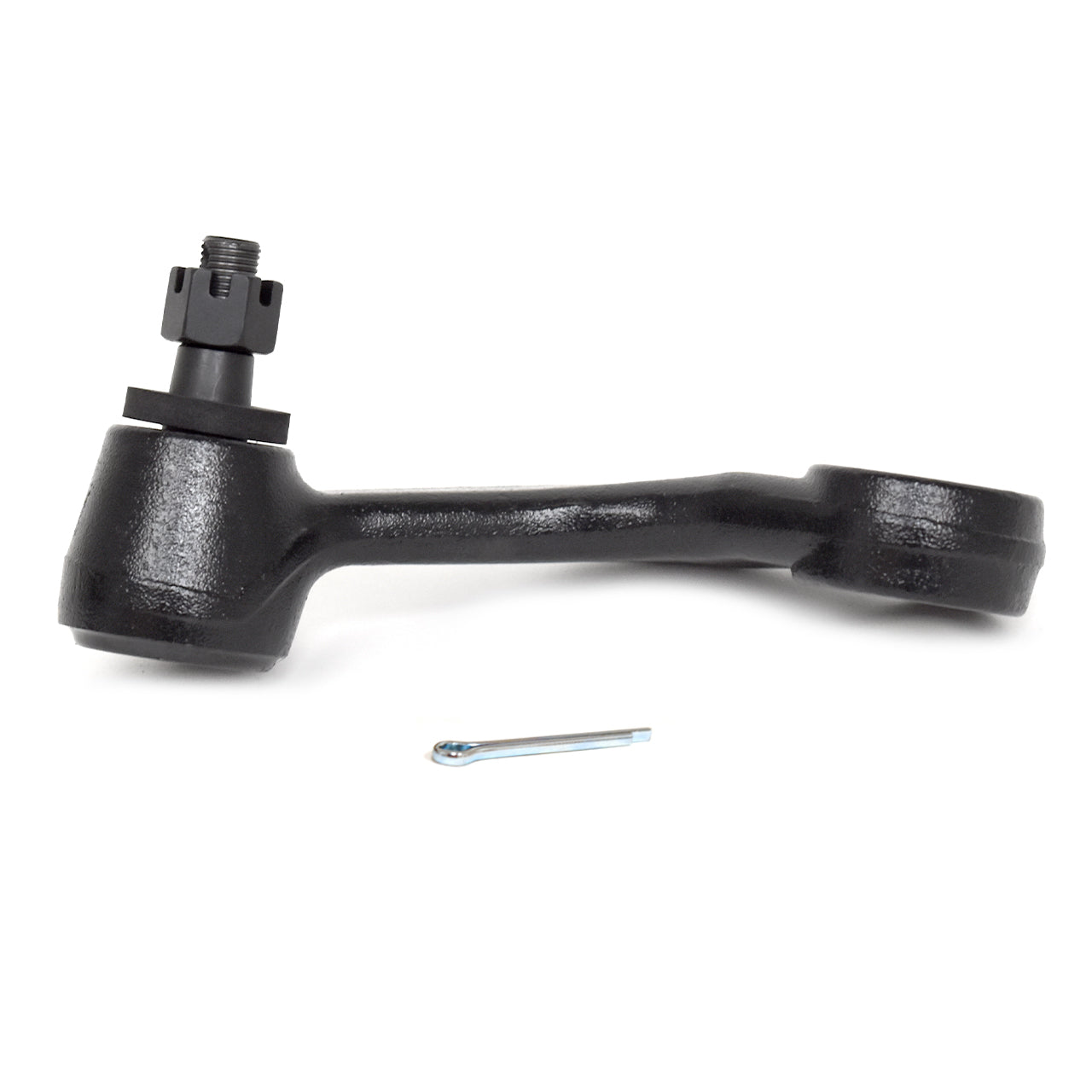

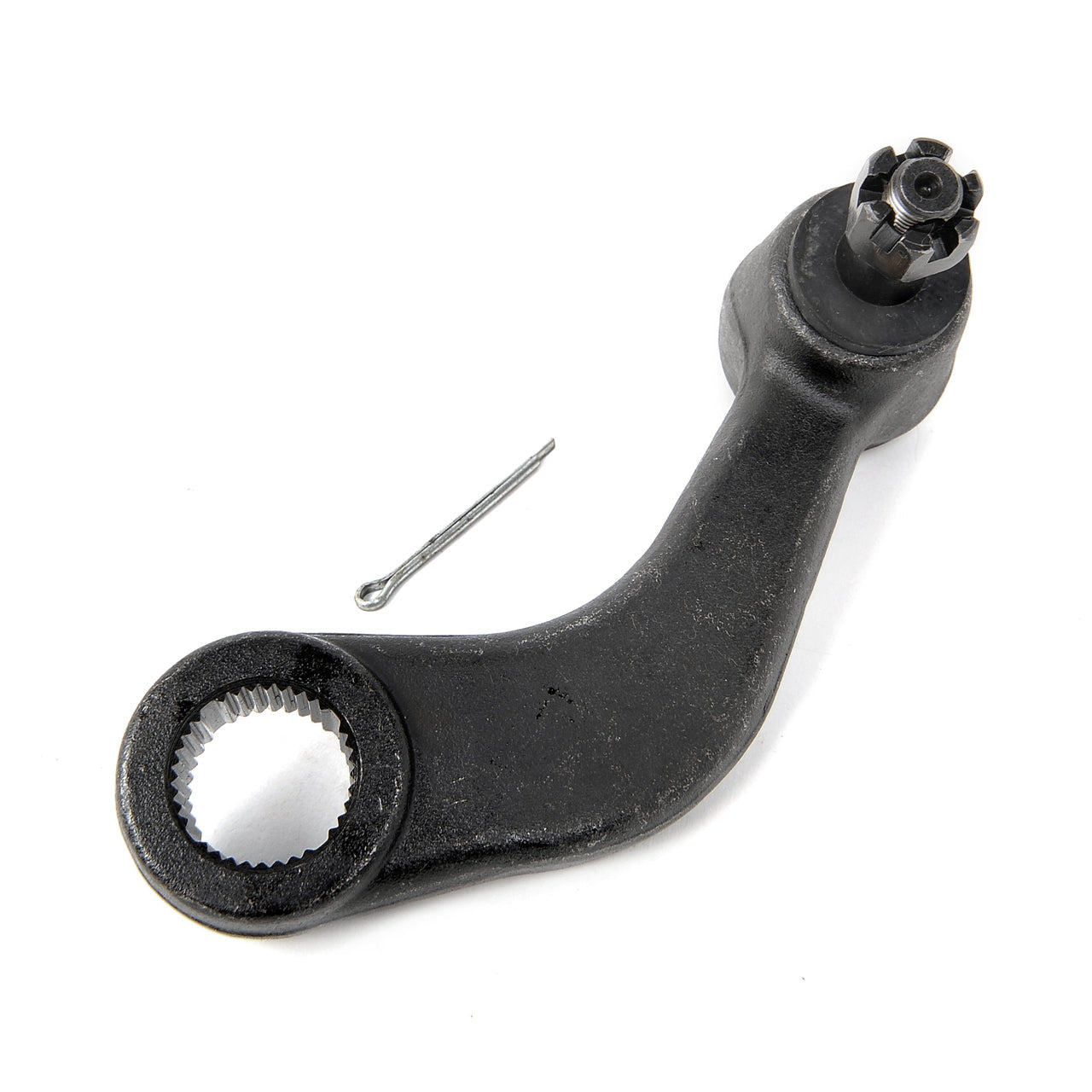

Restore correct manual steering connection on your 1970 Ford Mustang V8 with this pitman arm for a 1 1/8-inch sector shaft. Built as a factory-correct reproduction, this pitman arm connects the steering gear sector shaft to the center link and helps maintain proper steering geometry.
-
1970 Mustang V8 fitment: Built for 1970 Ford Mustang V8 pitman arm applications.
-
Manual steering application: Designed for manual steering equipped models.
-
1 1/8-inch sector shaft: Sized for steering gears with a 1 1/8-inch sector shaft.
-
Center link connection: Connects the steering gear sector shaft to the center link.
-
Factory-correct reproduction: Restores the correct steering linkage connection and original-style fit.
-
OE-spec geometry: Dimensions and angles help retain correct steering geometry.
-
Direct-fit replacement: Installs without additional modification.
This manual steering pitman arm is a key steering linkage component for 1970 Mustang V8 owners. The pitman arm transfers steering movement from the steering gear sector shaft to the center link, making it essential for proper steering response, linkage alignment, and front-end control.
Built as a factory-correct reproduction with OE-spec dimensions and angles, this pitman arm helps replace a worn, loose, damaged, incorrect, or missing steering linkage part. Sized for a 1 1/8-inch sector shaft, it is a strong choice when rebuilding the manual steering system, servicing the steering gear connection, correcting loose steering, preparing for alignment, or completing a clean classic Mustang restoration.
Restore manual steering linkage control on your 1970 Mustang V8 with a factory-correct pitman arm sized for a 1 1/8-inch sector shaft.
| Product Fitment |
| Make |
Ford |
| Model |
Mustang |
| Year Range |
1967-1970 |
| Specific Year Note |
1970 manual steering application |
| Steering Type |
Manual Steering |
| Engine Fitment |
V8 - All |
| Sector Shaft Size |
1 1/8 in. |
| Installation Location |
Steering gear sector shaft to center link |
| Application |
Pitman arm replacement, manual steering repair, steering gear connection service, center link support, front-end rebuild, alignment prep, or restoration |
| Product Specs |
| Product Type |
Pitman Arm |
| Steering Type |
Manual Steering |
| Sector Shaft Size |
1 1/8 in. |
| Engine Compatibility |
V8 - All |
| Fitment Style |
Factory-correct reproduction |
| Connection Point |
Steering gear sector shaft to center link |
| Steering Geometry |
OE-spec dimensions and angles retain correct steering geometry |
| Installation Detail |
Direct-fit replacement requiring no additional modification |
| Replacement Use |
Replaces worn, loose, damaged, bent, incorrect, or missing pitman arm |
| Package Dimensions |
9 in. L x 5 in. W x 3 in. H |
| Approximate Weight |
2.25 lb. |
