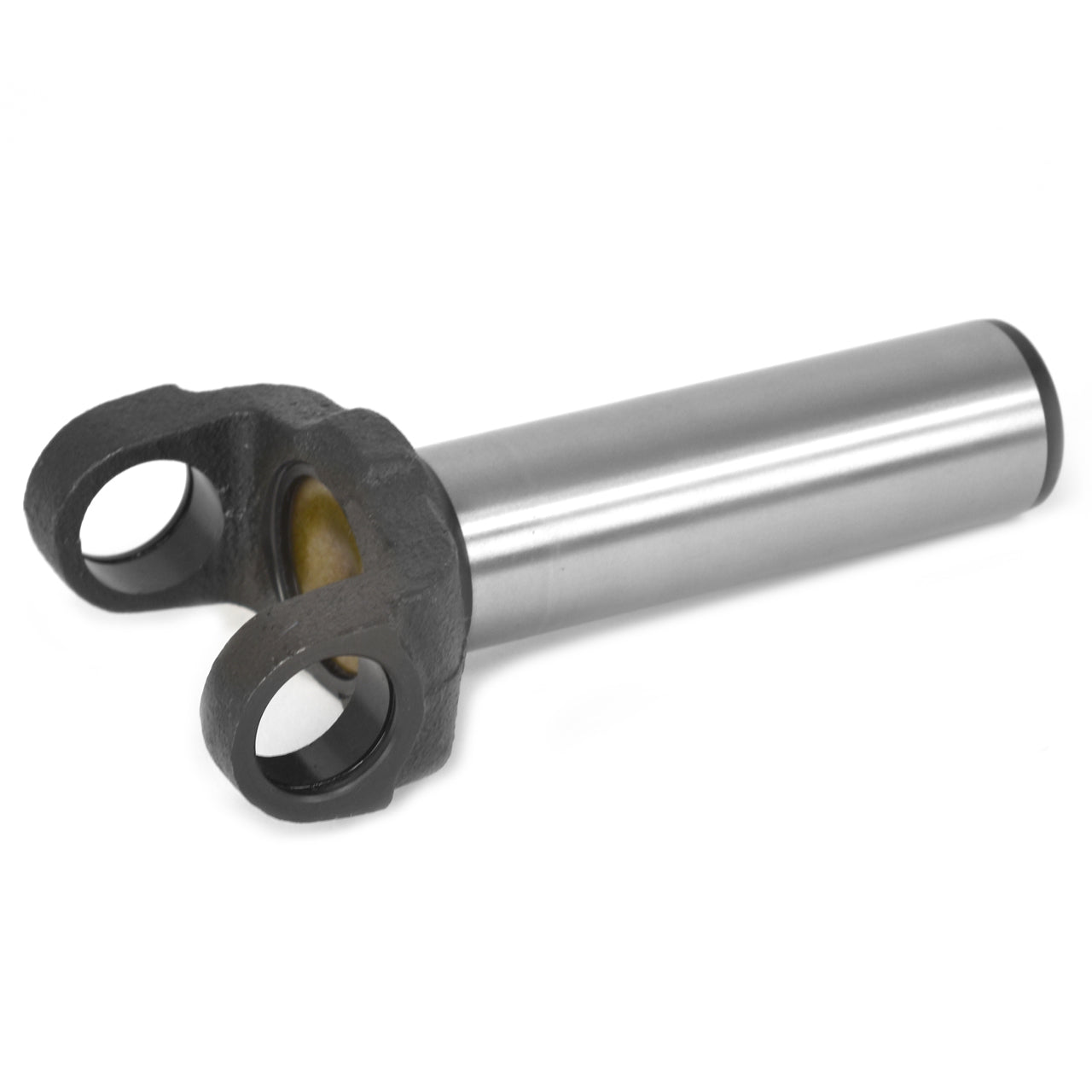

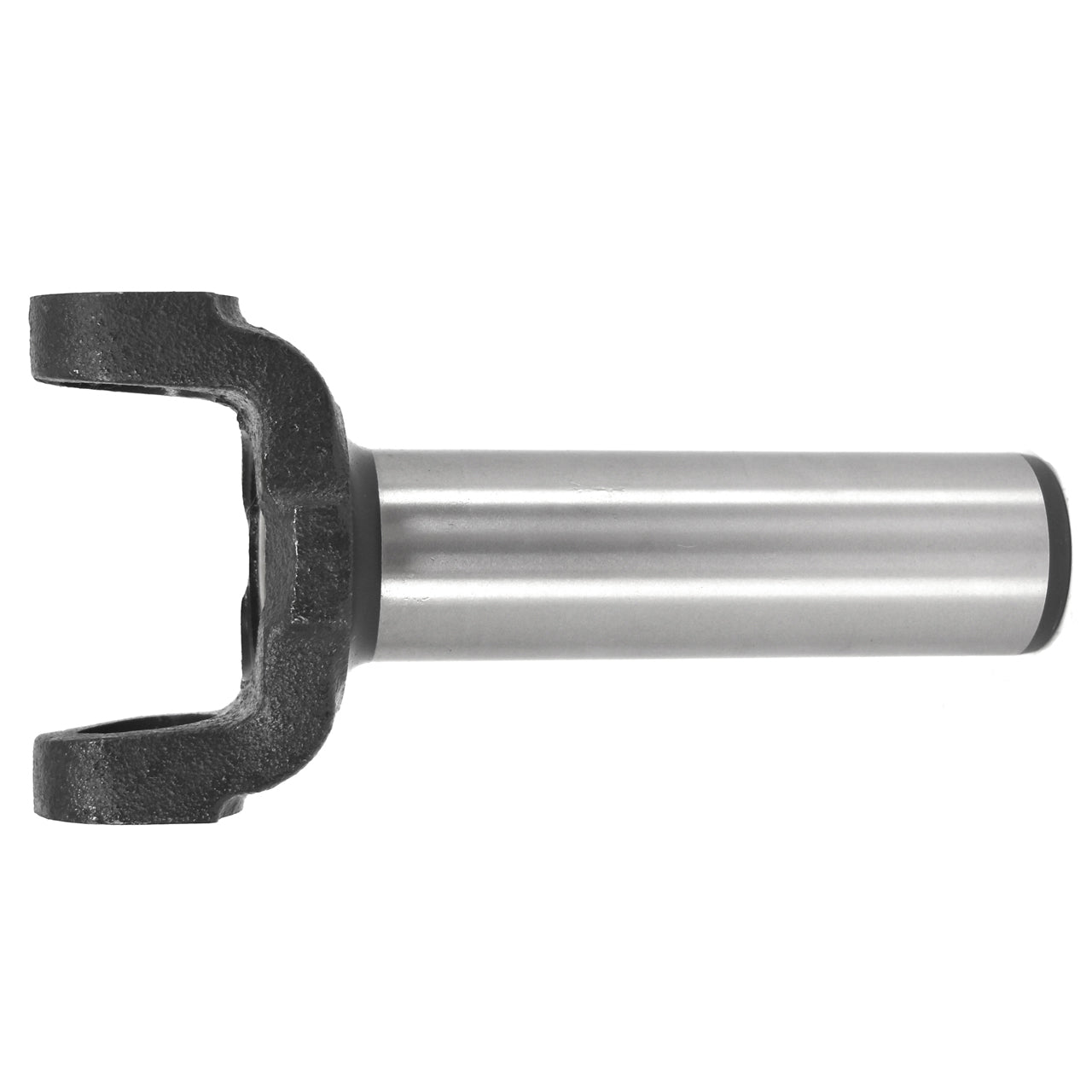

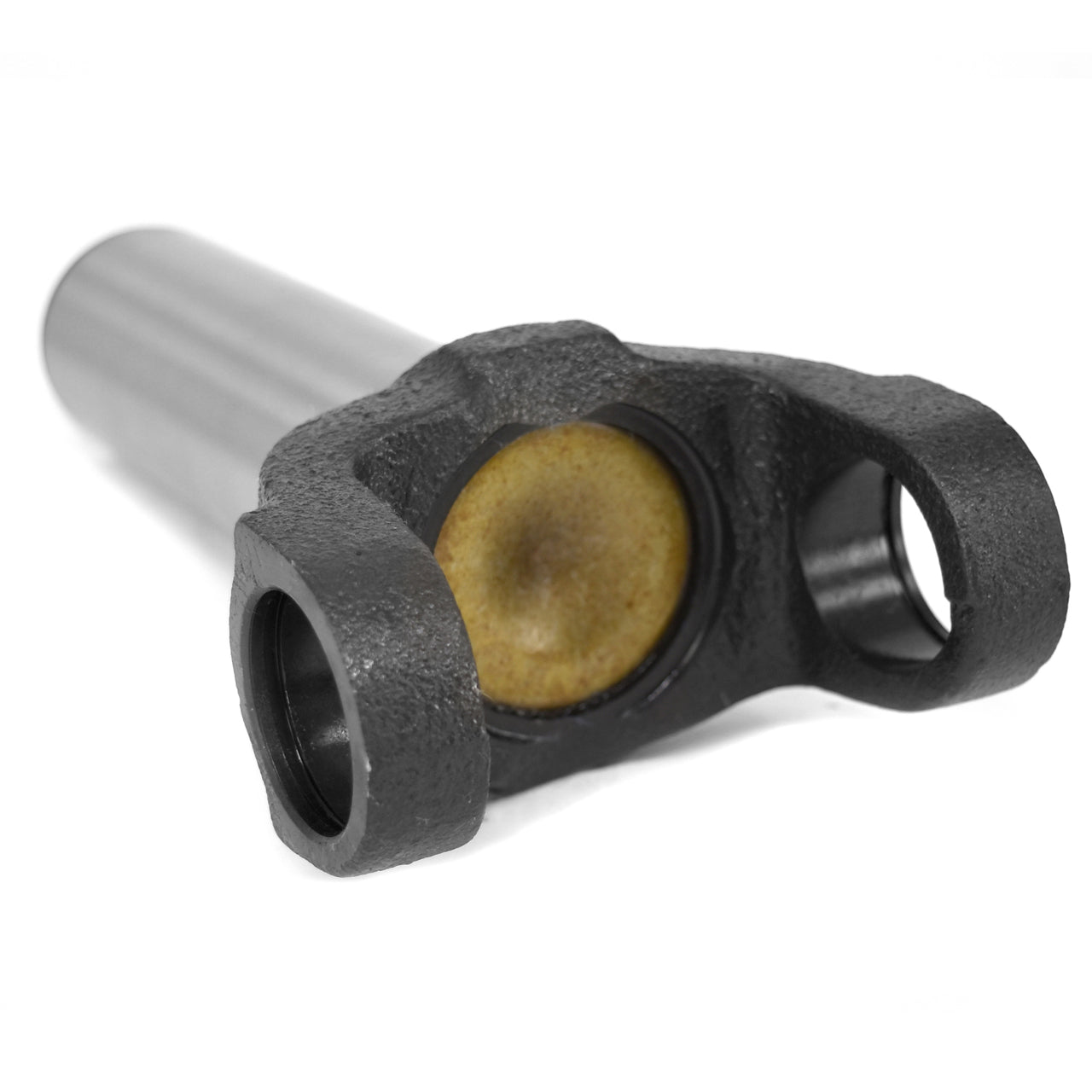

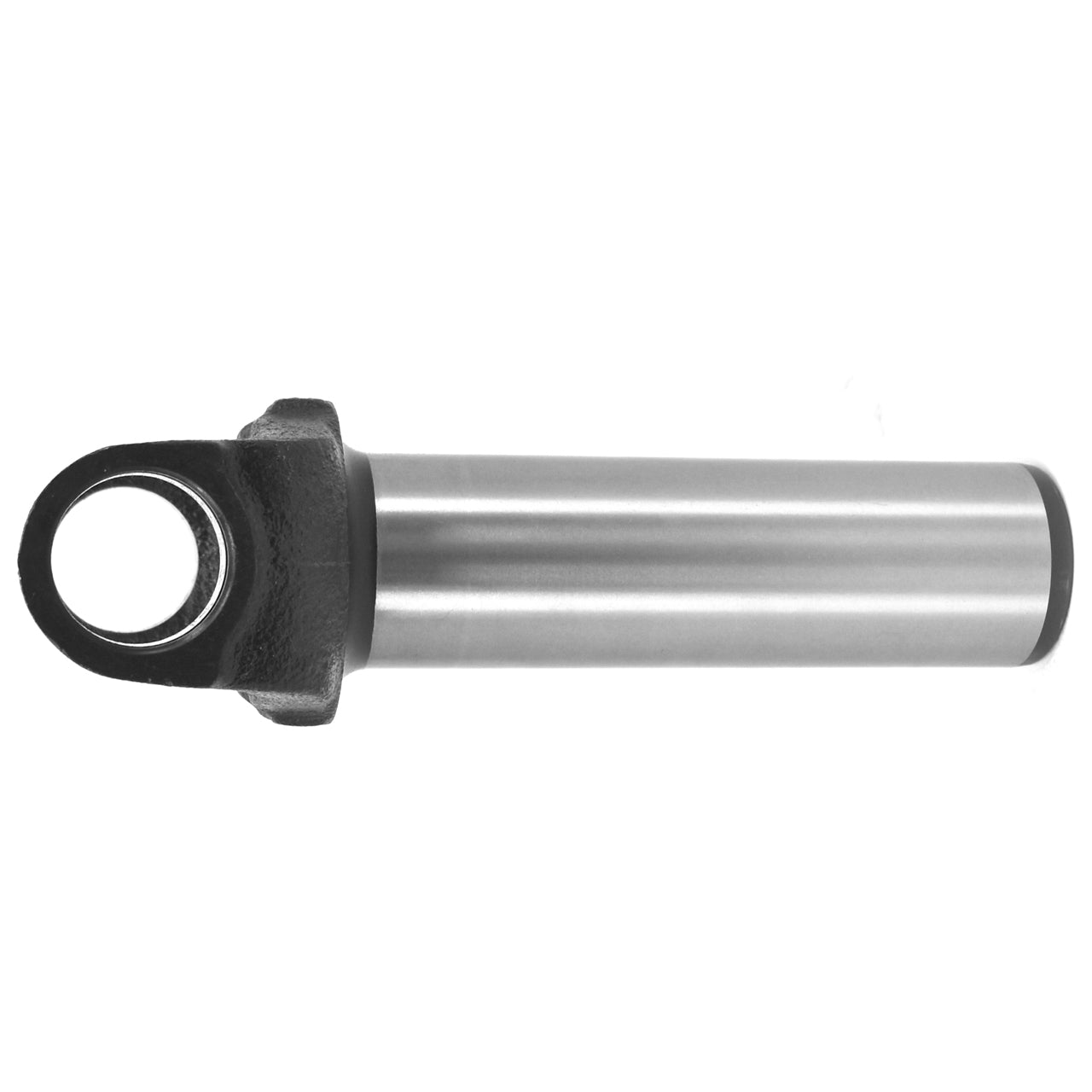

Restore the transmission-to-driveshaft connection on your 1965-1970 Ford Mustang T5 swap with this 28-spline driveshaft slip yoke. Built as a high-quality reproduction with cast steel construction, this outer clip style yoke is designed for T5 manual transmission conversions and helps transfer power from the transmission to the driveshaft and rear end.
-
1965-1970 Mustang fitment: Built for classic Ford Mustang T5 manual transmission conversion applications.
-
T5 swap application: Designed for T5 manual transmission conversion setups.
-

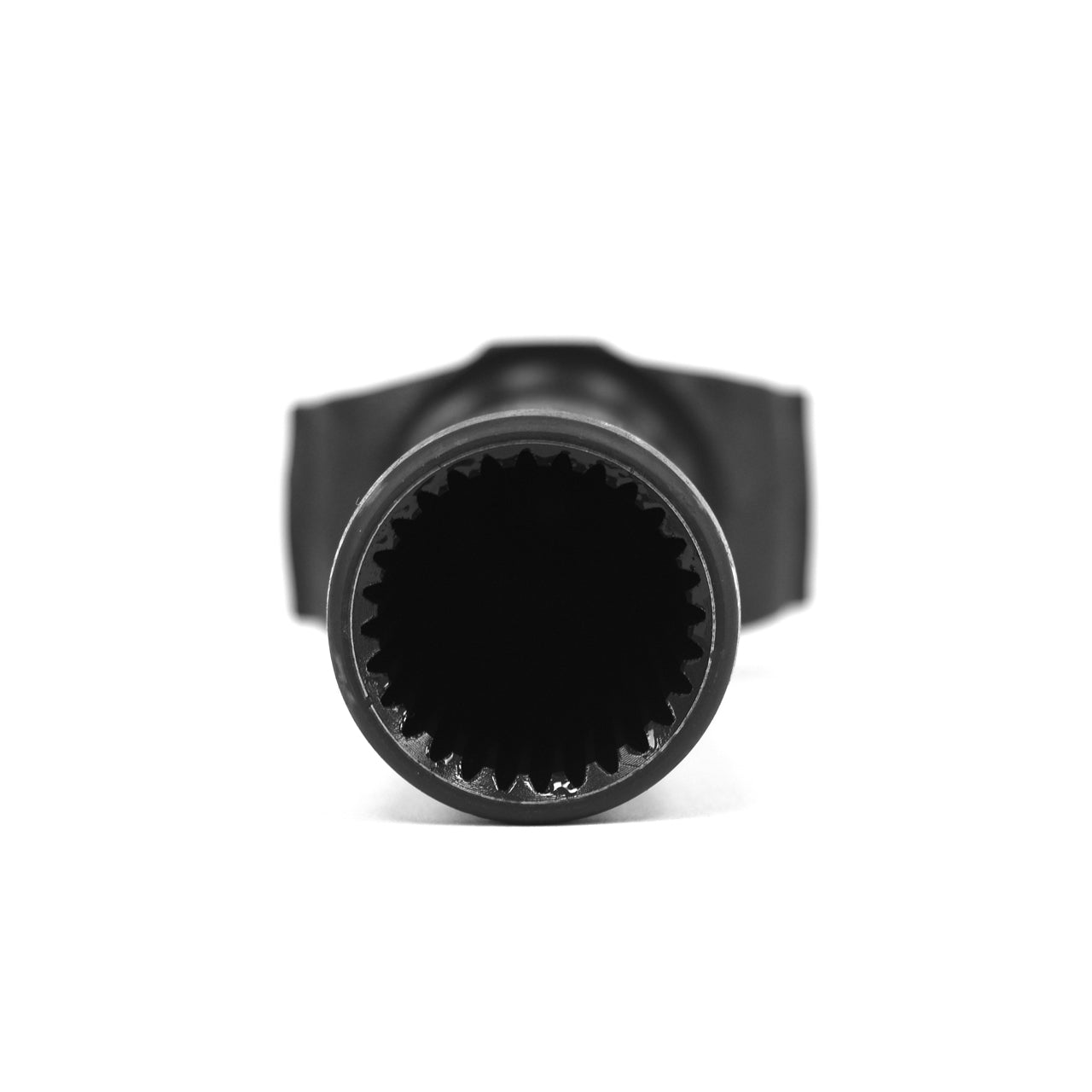

28-spline configuration: Built with a 28-spline design for the transmission output connection.
-
Outer clip style: Designed for outer clip U-joint applications with a 1-1/16 inch cap.
-
1310 U-joint compatibility: Rotates compatible 1310 U-joints connected to the driveshaft.
-
Transmission-to-driveshaft connection: Attaches to the rear of the transmission and connects to the driveshaft.
-
Cast steel construction: High-quality reproduction built for strength in the driveline system.
This driveshaft slip yoke is an important driveline component for 1965-1970 Mustang owners converting to a T5 manual transmission. The slip yoke attaches to the rear of the transmission and connects to the driveshaft, allowing the drivetrain to transfer rotation from the transmission toward the rear axle.
Designed to rotate 1310 U-joints connected to the driveshaft, this 28-spline outer clip style yoke helps complete the transmission-to-driveshaft connection for a T5 swap. With cast steel construction and a 1-1/16 inch cap specification, it is a strong choice for manual transmission conversions, driveshaft repair, U-joint service, drivetrain refreshes, or a clean classic Mustang restomod build.
Complete the driveline connection on your 1965-1970 Mustang T5 swap with a 28-spline outer clip style slip yoke built for T5 manual transmission conversions.
| Product Fitment |
| Make |
Ford |
| Model |
Mustang |
| Year Range |
1965-1970 |
| Conversion Application |
T5 Manual Transmission Conversion |
| U-Joint Style |
Outer Clip Style |
| Installation Location |
Rear of transmission / front of driveshaft |
| Application |
T5 swap, manual transmission conversion, driveshaft slip yoke replacement, driveshaft repair, U-joint service, drivetrain refresh, or restomod build |
| Product Specs |
| Product Type |
Driveshaft Slip Yoke |
| Transmission Conversion |
T5 Manual Transmission Conversion |
| Spline Count |
28 Spline |
| Cap Size |
1-1/16 in. |
| U-Joint Compatibility |
1310 U-joints |
| U-Joint Style |
Outer Clip Style |
| Material |
Cast Steel |
| Function |
Attaches to the rear of the transmission, connects to the driveshaft, and sends power toward the rear end |
| Replacement Use |
Replaces worn, damaged, incorrect, loose, or missing driveshaft slip yoke in T5 conversion applications |
| Package Dimensions |
9 in. L x 4 in. W x 3 in. H |
| Approximate Weight |
2.13 lb. |
