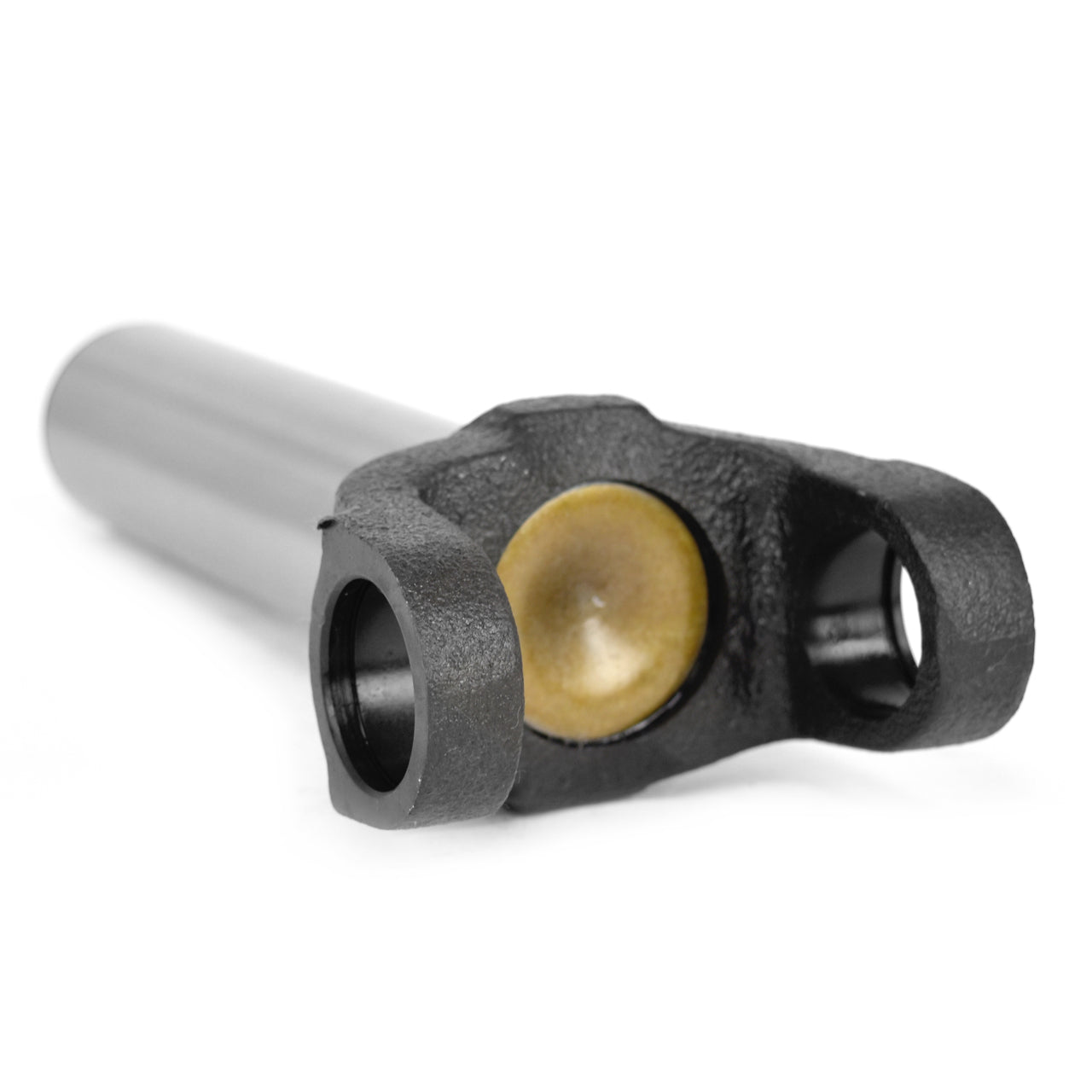

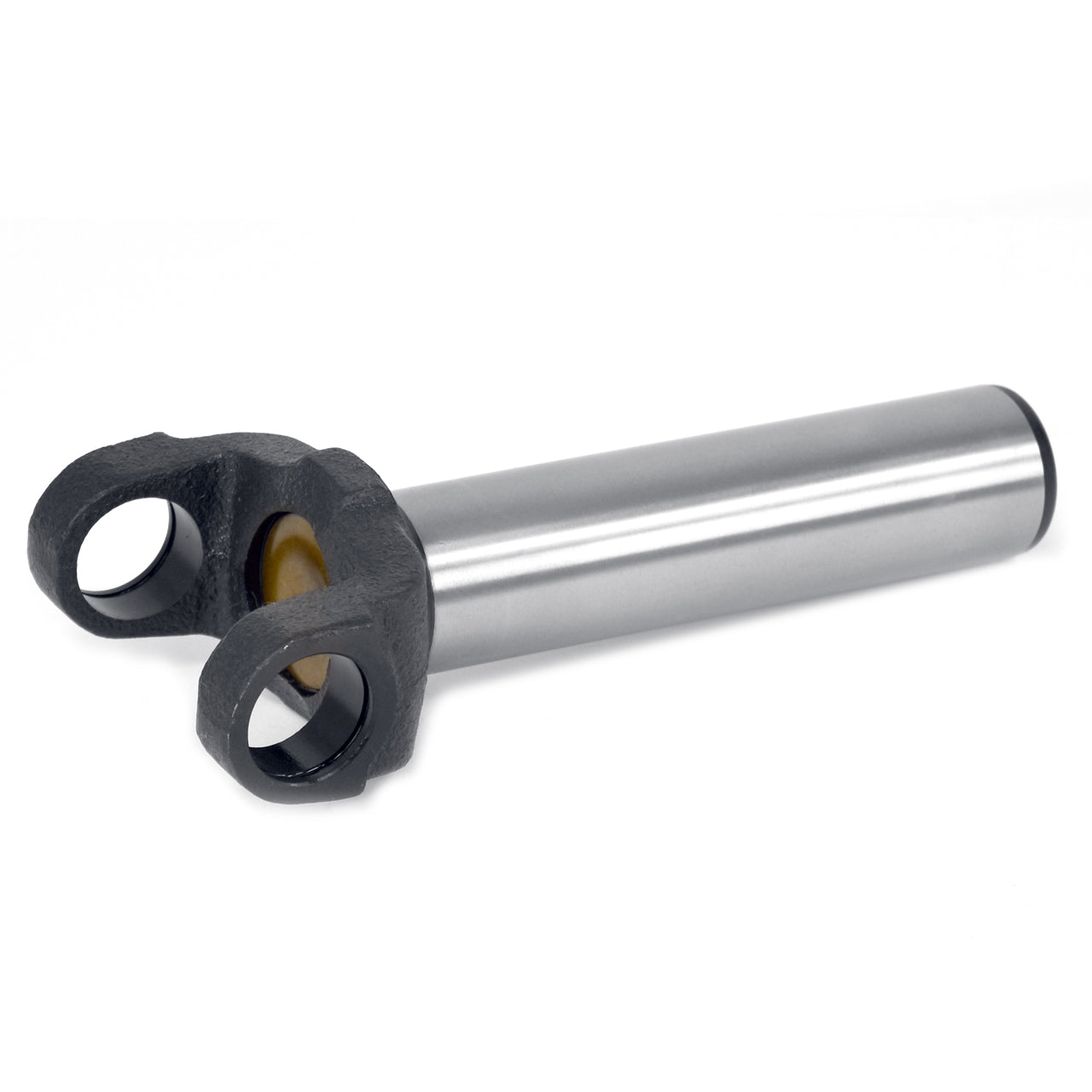

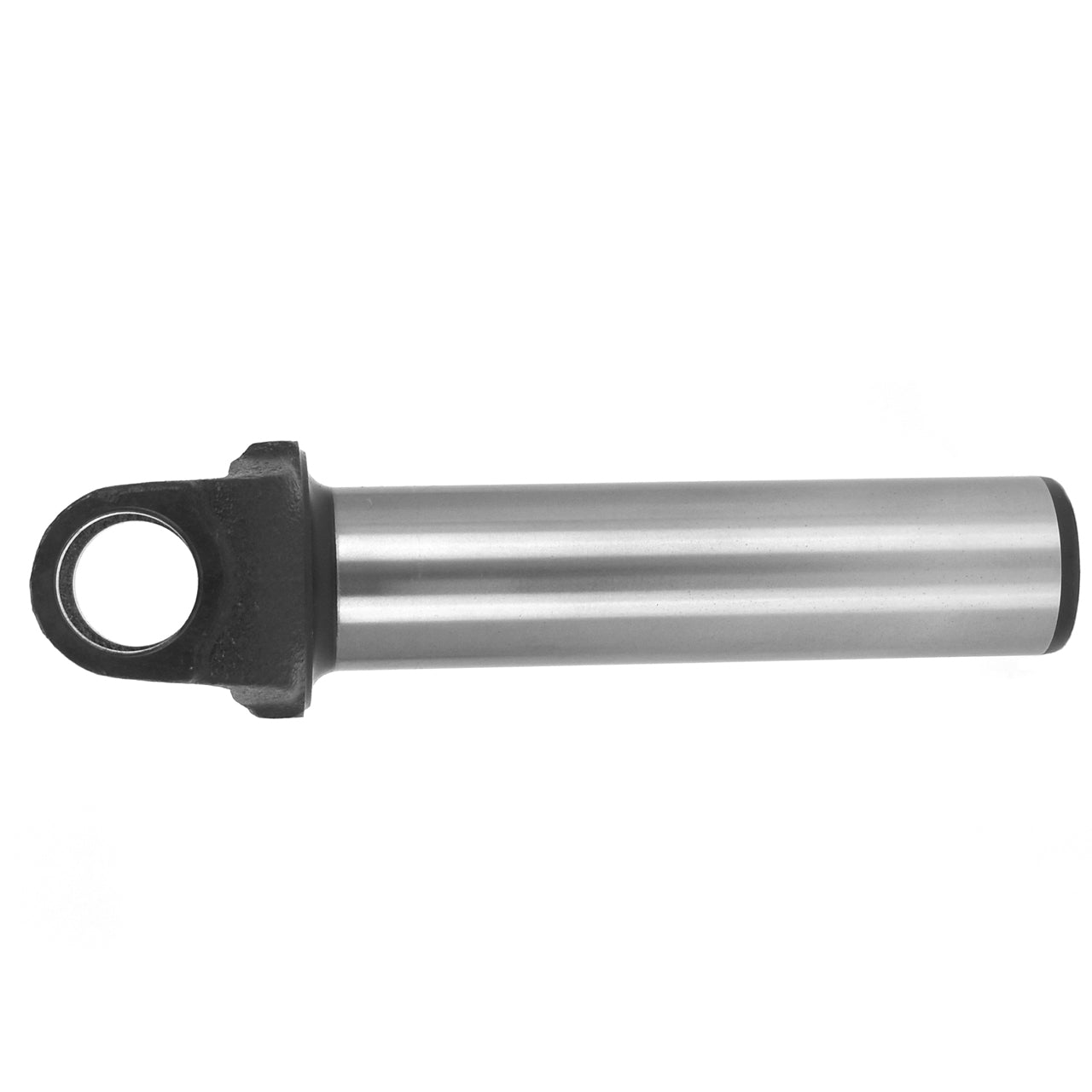

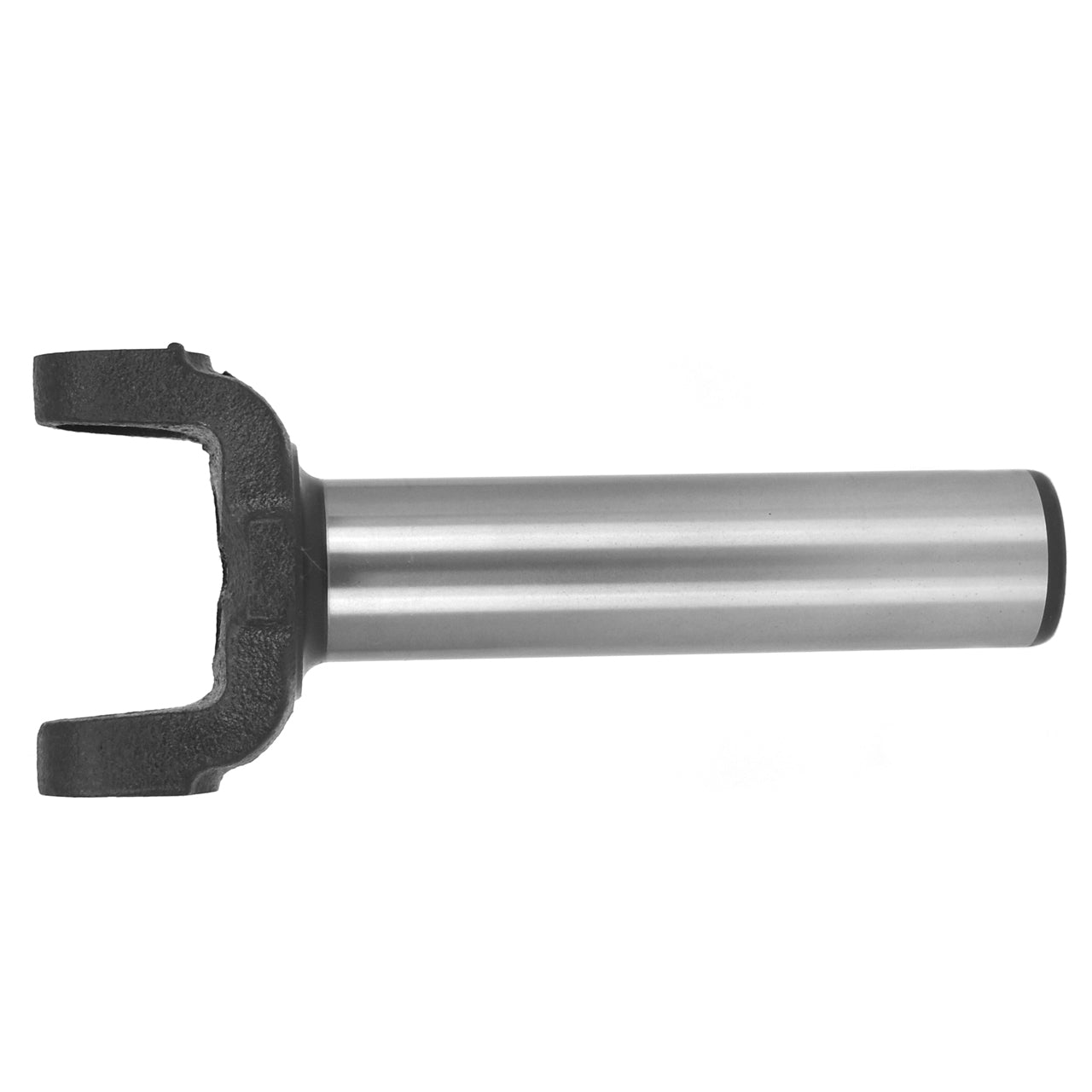

Restore the driveshaft connection on your early Ford Mustang with a 260 or 289 V8 using this 25-spline driveshaft slip yoke. Built as a high-quality reproduction with cast steel construction, this outer clip style yoke attaches to the rear of the transmission, connects to the driveshaft, and helps transfer power toward the rear end.
-
Early Mustang V8 fitment: Built for compatible 1964-1965 Ford Mustang driveshaft slip yoke applications.
-
260 / 289 V8 fitment: Designed for compatible early Mustang V8 drivetrain setups.
-
3-speed or Toploader 4-speed use: Made for specified manual transmission applications.
-

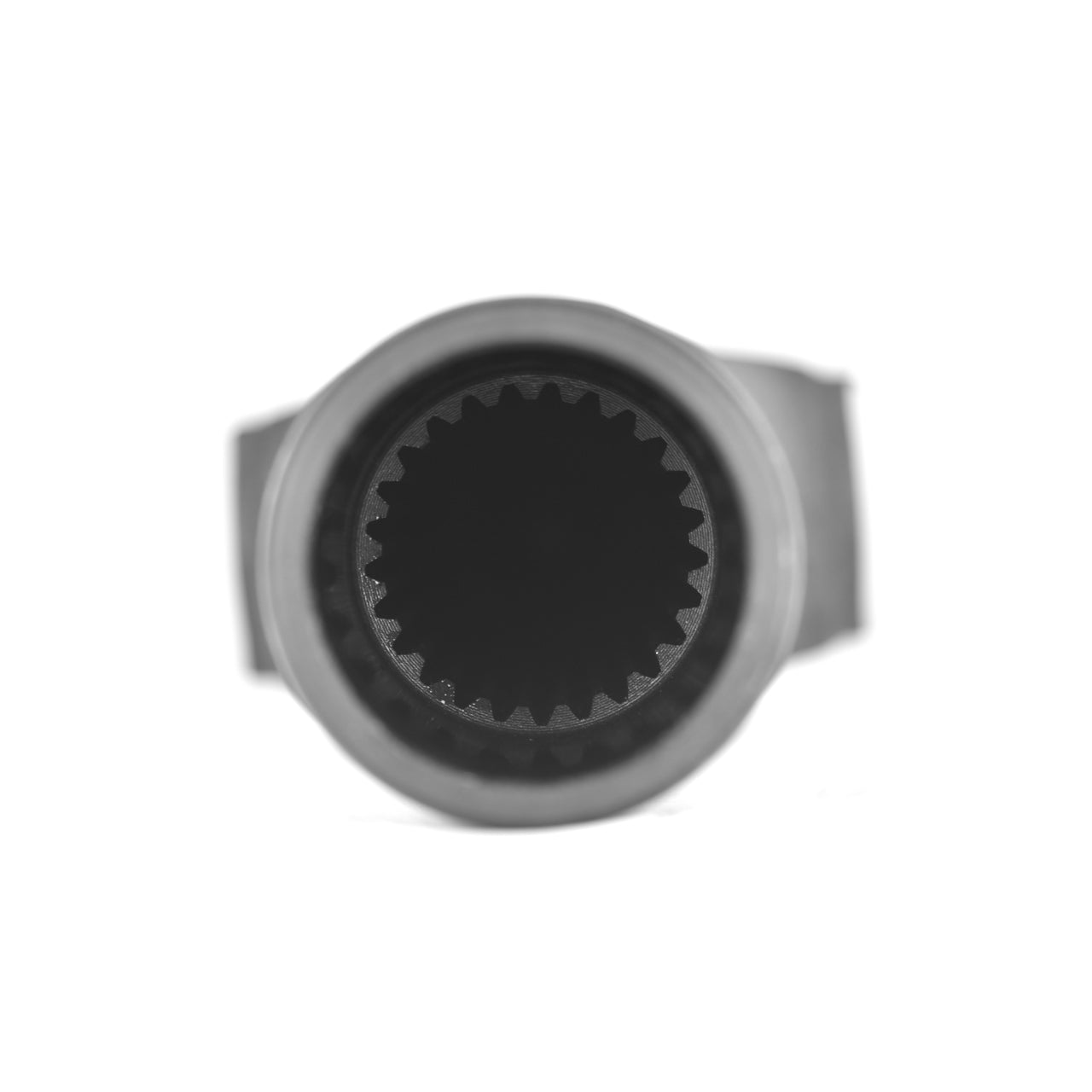

25-spline configuration: Built with a 25-spline design for proper transmission output connection.
-
Outer clip style: Designed for outer clip U-joint applications with a 1-1/16 inch cap.
-
1310 U-joint compatibility: Rotates compatible U-joints connected to the driveshaft.
-
Cast steel construction: High-quality reproduction built for strength in the driveline system.
This driveshaft slip yoke is an important driveline component for early Mustang owners running a 260 or 289 V8 with a 3-speed or Toploader 4-speed manual transmission. The slip yoke attaches to the rear of the transmission and connects to the driveshaft, allowing the drivetrain to transfer rotation from the transmission toward the rear axle.
Designed to rotate 1310 U-joints connected to the driveshaft, this 25-spline outer clip style yoke helps replace worn, damaged, incorrect, or missing driveline hardware. With cast steel construction and a 1-1/16 inch cap specification, it is a strong choice for manual transmission service, driveshaft repair, U-joint service, drivetrain refreshes, or a clean classic Mustang restoration.
Restore the transmission-to-driveshaft connection on your early Mustang V8 with a 25-spline outer clip style slip yoke for 3-speed or Toploader 4-speed manual transmission applications.
| Product Fitment |
| Make |
Ford |
| Model |
Mustang |
| Year Range |
1964.5-1965 |
| Engine Fitment |
260 / 289 V8 |
| Transmission |
3-Speed or Toploader 4-Speed Manual Transmission |
| U-Joint Style |
Outer Clip Style |
| Installation Location |
Rear of transmission / front of driveshaft |
| Application |
Driveshaft slip yoke replacement, manual transmission service, driveshaft repair, U-joint service, drivetrain refresh, or restoration |
| Product Specs |
| Product Type |
Driveshaft Slip Yoke |
| Spline Count |
25 Spline |
| Cap Size |
1-1/16 in. |
| U-Joint Compatibility |
1310 U-joints |
| U-Joint Style |
Outer Clip Style |
| Material |
Cast Steel |
| Function |
Attaches to the rear of the transmission, connects to the driveshaft, and sends power toward the rear end |
| Replacement Use |
Replaces worn, damaged, incorrect, loose, or missing driveshaft slip yoke |
| Package Dimensions |
10 in. L x 4 in. W x 3 in. H |
| Approximate Weight |
2.6 lb. |
