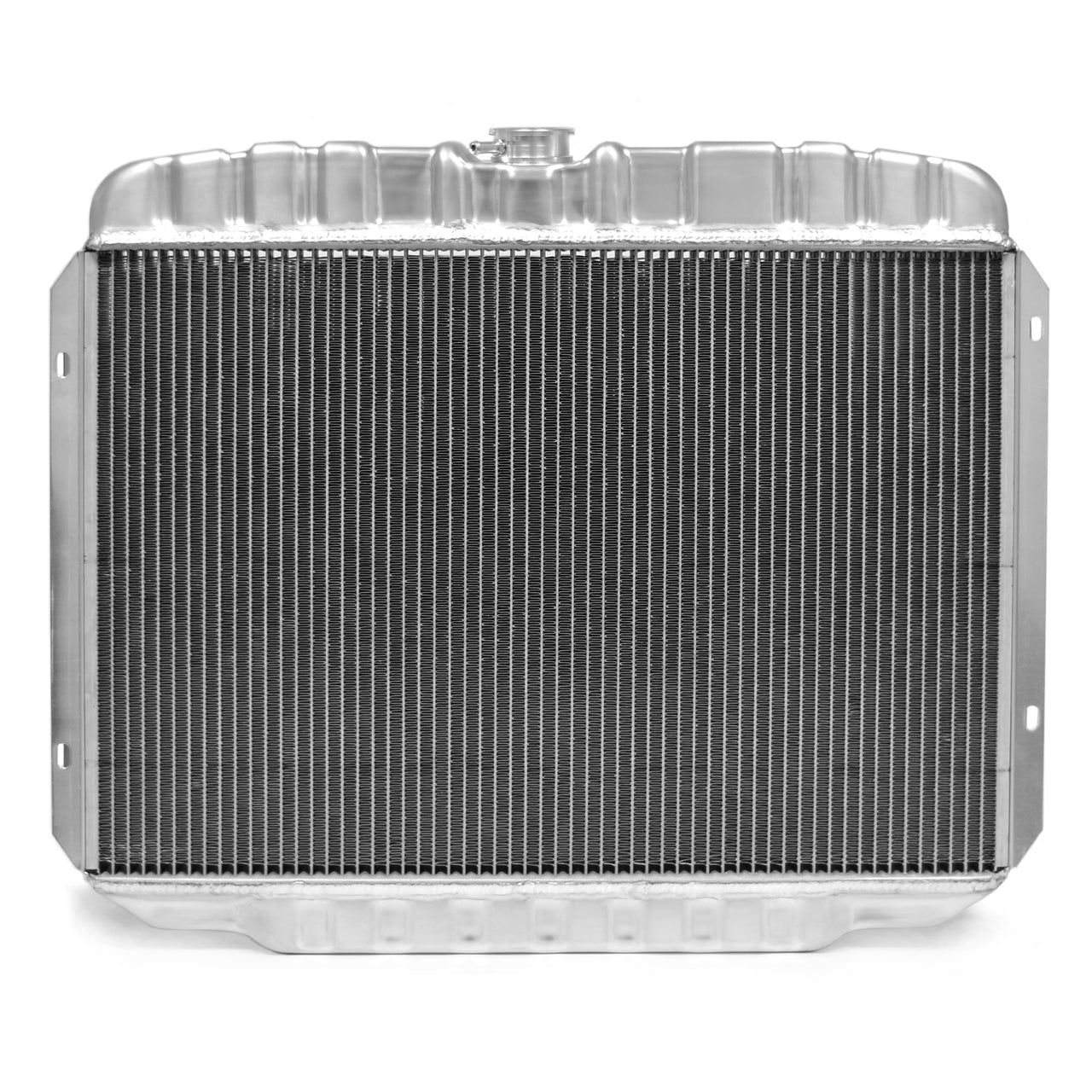

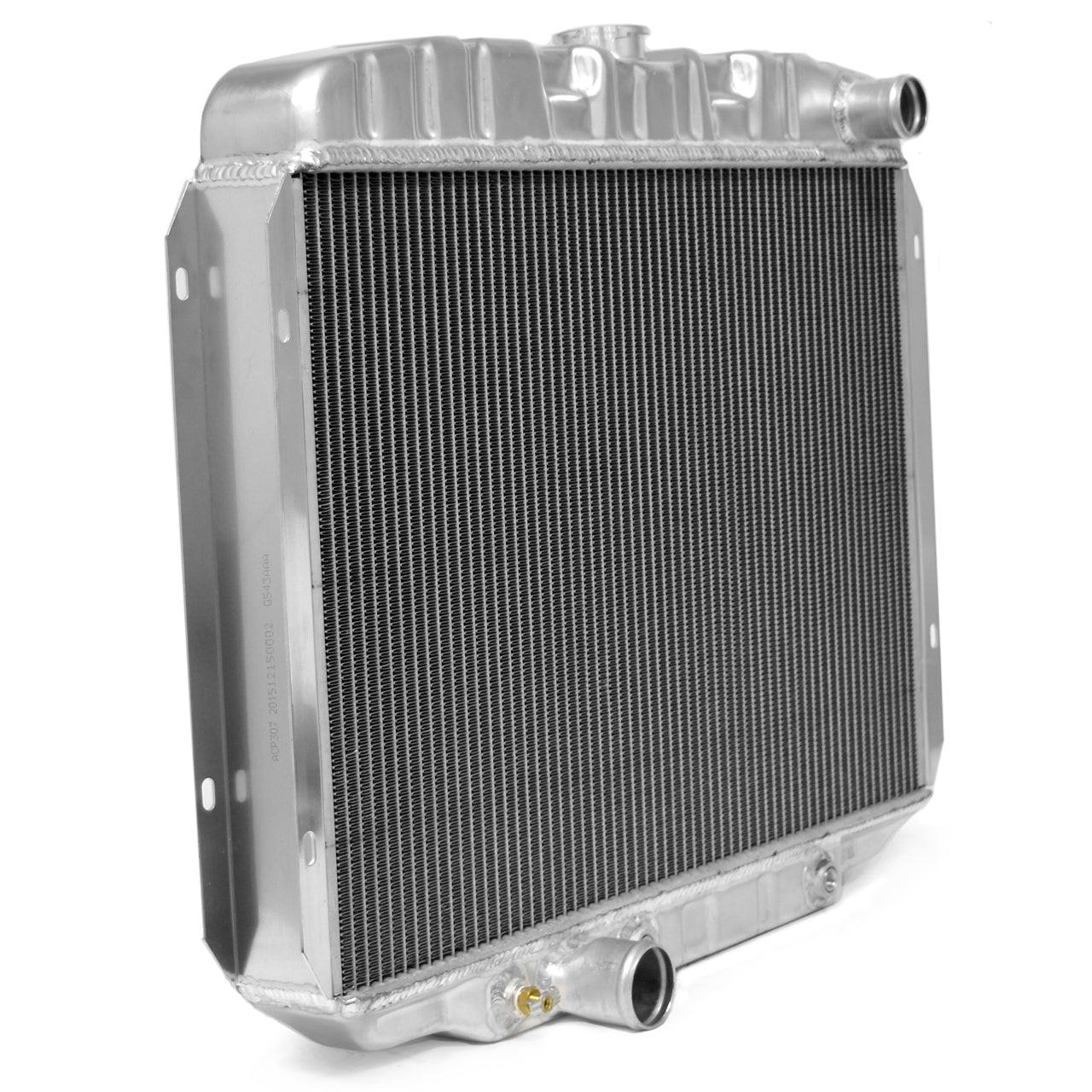

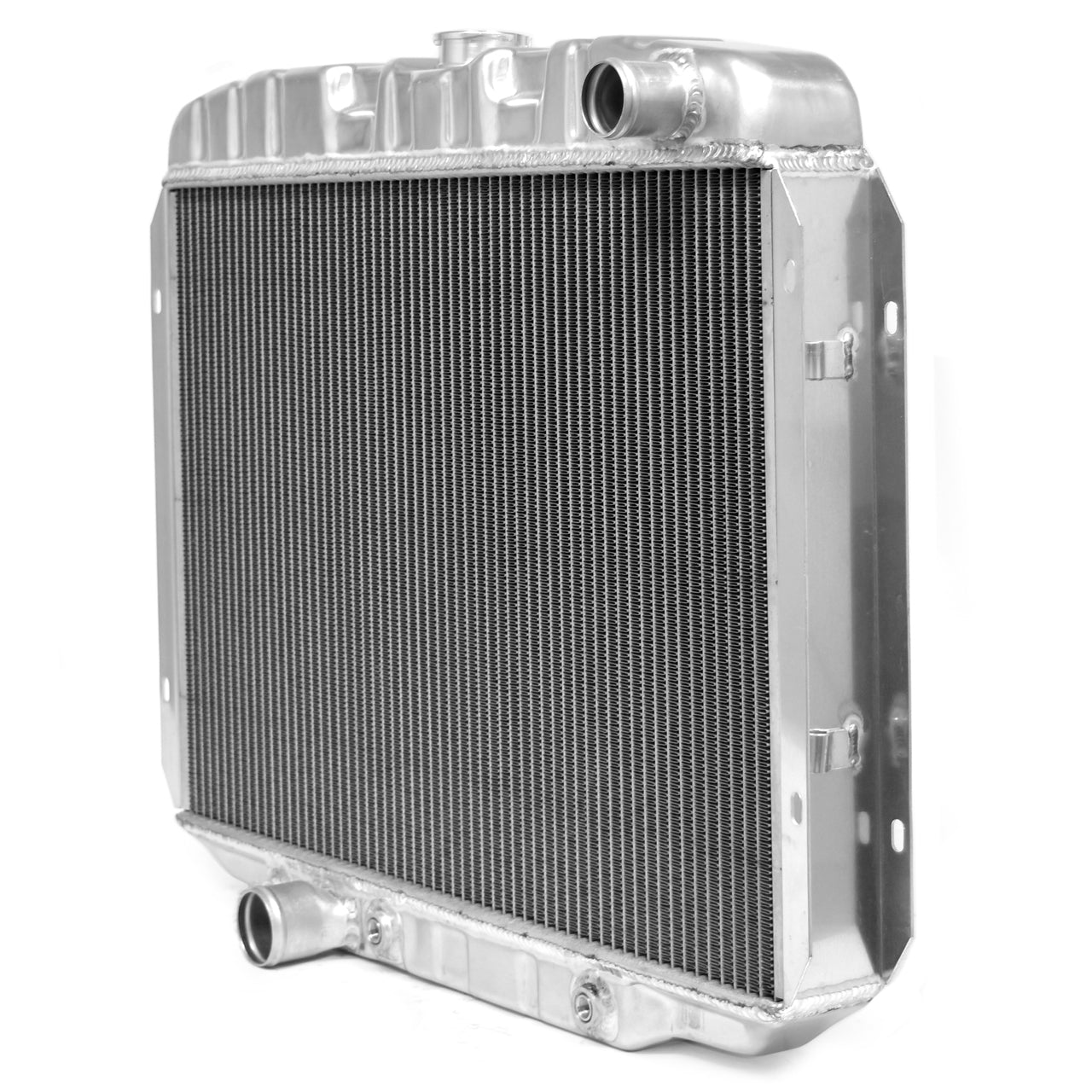

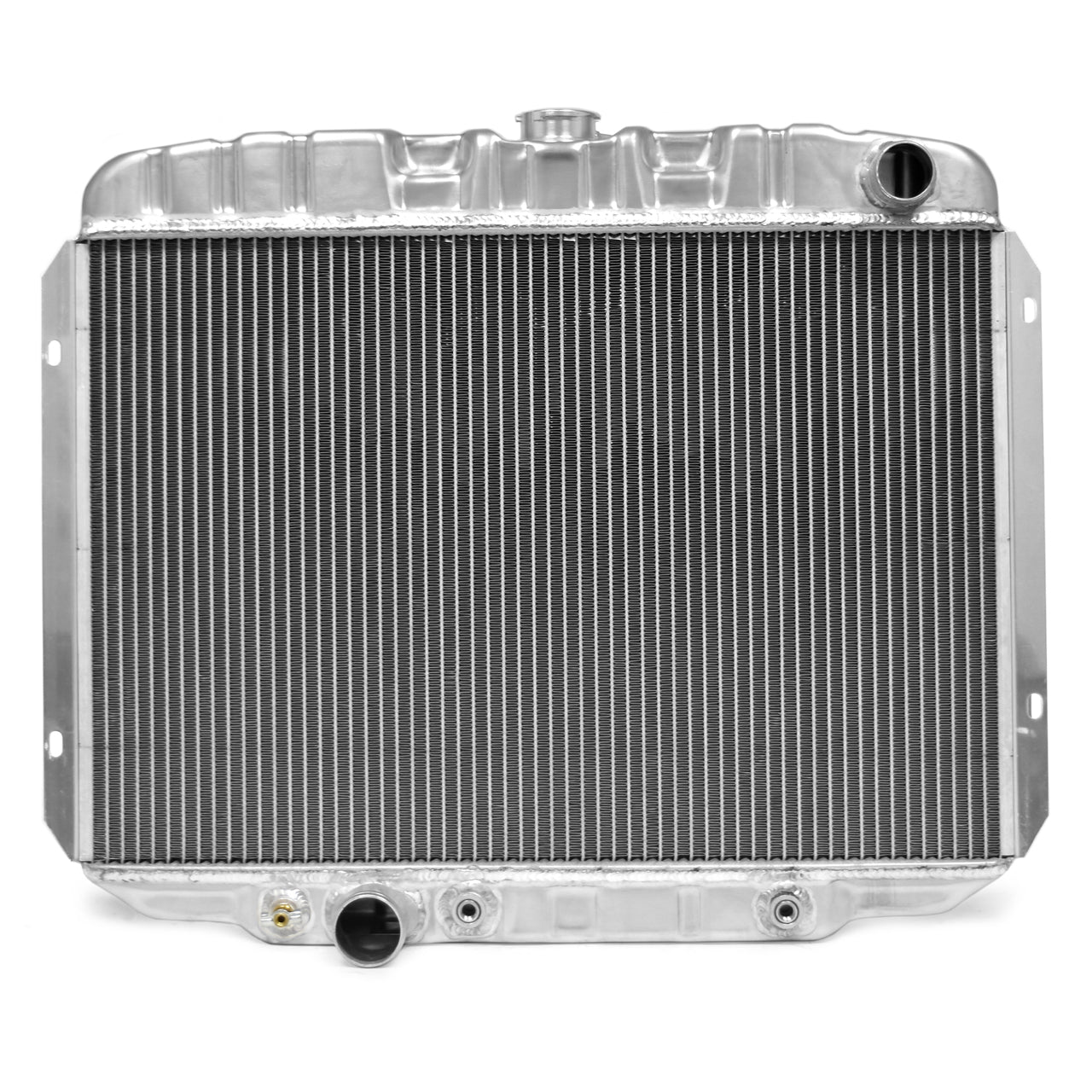

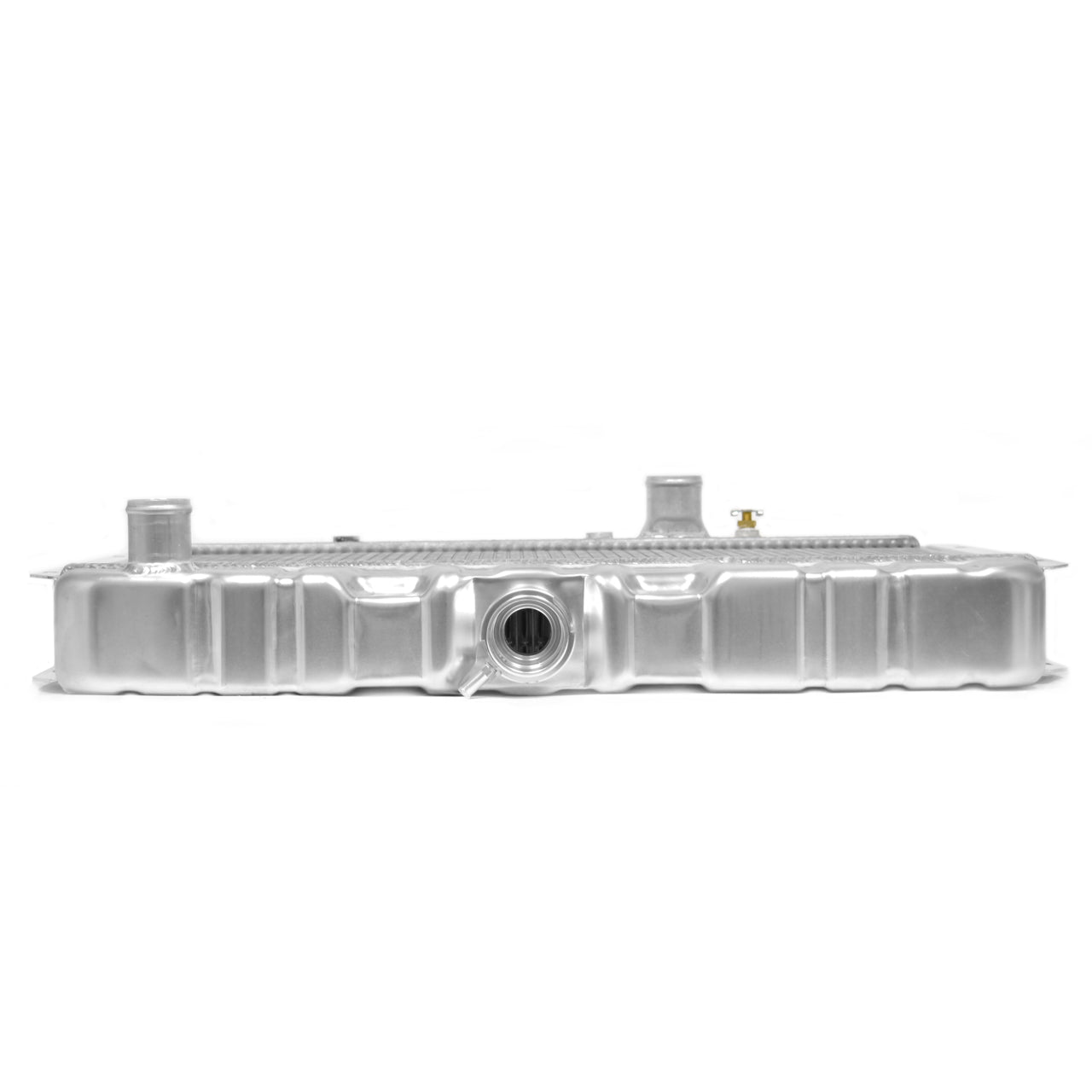

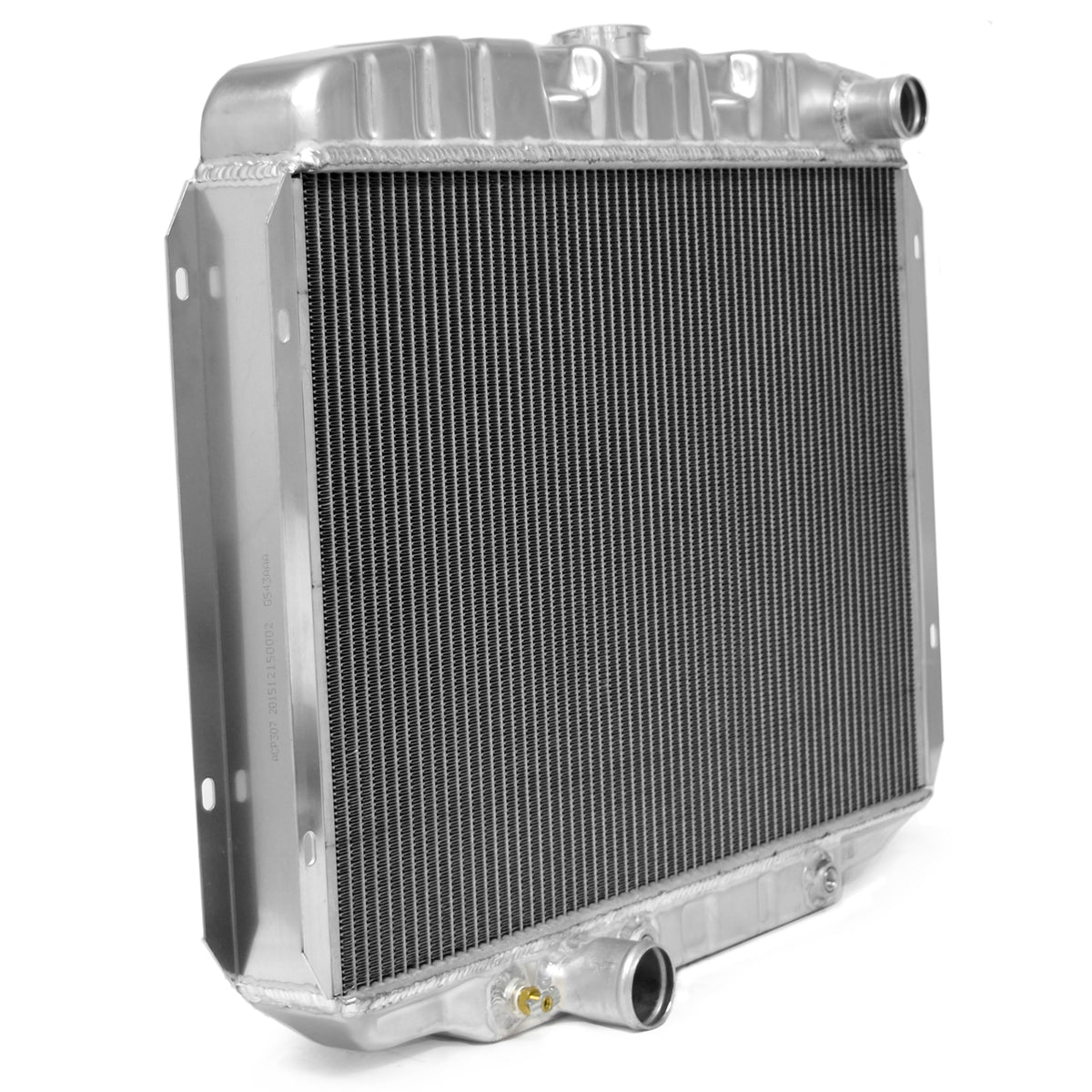

Upgrade your 1970 Ford Mustang with this 24-inch 3-row aluminum radiator, designed for 302 and 351W V8 applications that use a 24-inch radiator support. Built with three 0.75-inch cores, OE-style tanks, and premium aluminum construction, it delivers improved cooling performance while preserving a clean, factory-inspired classic Mustang engine bay look.
-
Improved Cooling Performance: 3-row aluminum design helps increase coolant flow and heat transfer for classic V8 applications.
-
Expanded Core Design: Three 0.75-inch cores maximize tube size for better flow and dependable cooling efficiency.
-
302 / 351W V8 Fitment: Designed for 1970 Ford Mustangs equipped with 302 or 351W V8 engines.
-
24-Inch Support Required: Built for Mustangs equipped with the larger 24-inch radiator support.
-
24-Inch Radiator Configuration: Larger radiator size provides expanded cooling capacity for compatible classic Mustang applications.
-
Premium Aluminum Construction: Quality aluminum provides excellent strength, corrosion resistance, and reduced weight.
-
OE-Style Tank Appearance: Factory-inspired tanks help preserve a clean, period-correct engine bay appearance.
-
Fully TIG-Welded Durability: Precision TIG-welded seams and a billet filler neck support long-term reliability.
This aluminum performance radiator is a dependable cooling upgrade for 1970 Mustang owners running a 302 or 351W V8 with a 24-inch radiator support. Its 3-row design uses three 0.75-inch cores to expand coolant flow and improve heat dissipation, making it a strong choice for restored drivers, weekend cruisers, and street-driven classics that need better temperature control than an aging original radiator can provide.
The OE-type tanks allow this radiator to blend naturally into a classic Mustang engine bay, while the premium aluminum construction adds modern strength, corrosion resistance, and reduced weight. Fully TIG-welded seams and a billet filler neck further enhance durability, giving your Mustang project a clean, confidence-inspiring cooling system upgrade with classic styling and reliable performance.
Upgrade your 24-inch-support Mustang with 3-row aluminum cooling, OE-style tanks, TIG-welded strength, and V8 confidence.
| Product Fitment |
| Make |
Ford |
| Model |
Mustang |
| Year Range |
1970 |
| Engine Fitment |
302 / 351W V8 |
| Radiator Support Requirement |
Requires 24-inch radiator support |
| Radiator Size |
24 inch |
| Application |
Classic Mustang cooling system upgrade or replacement |
| Product Specs |
| Product Type |
Aluminum Radiator |
| Radiator Style |
Performance Radiator with OE-Type Tanks |
| Row Count |
3-Row |
| Core Configuration |
3 x 0.75-inch cores |
| Core Size |
24 inch |
| Core Design |
3-row 0.75-inch core design for expanded flow and improved cooling |
| Material |
Premium Aluminum |
| Construction |
Fully TIG Welded |
| Filler Neck |
Billet Filler Neck |
| Dimensions |
29 in. L x 8 in. W x 25 in. H |
| Approximate Weight |
20 lb. |
