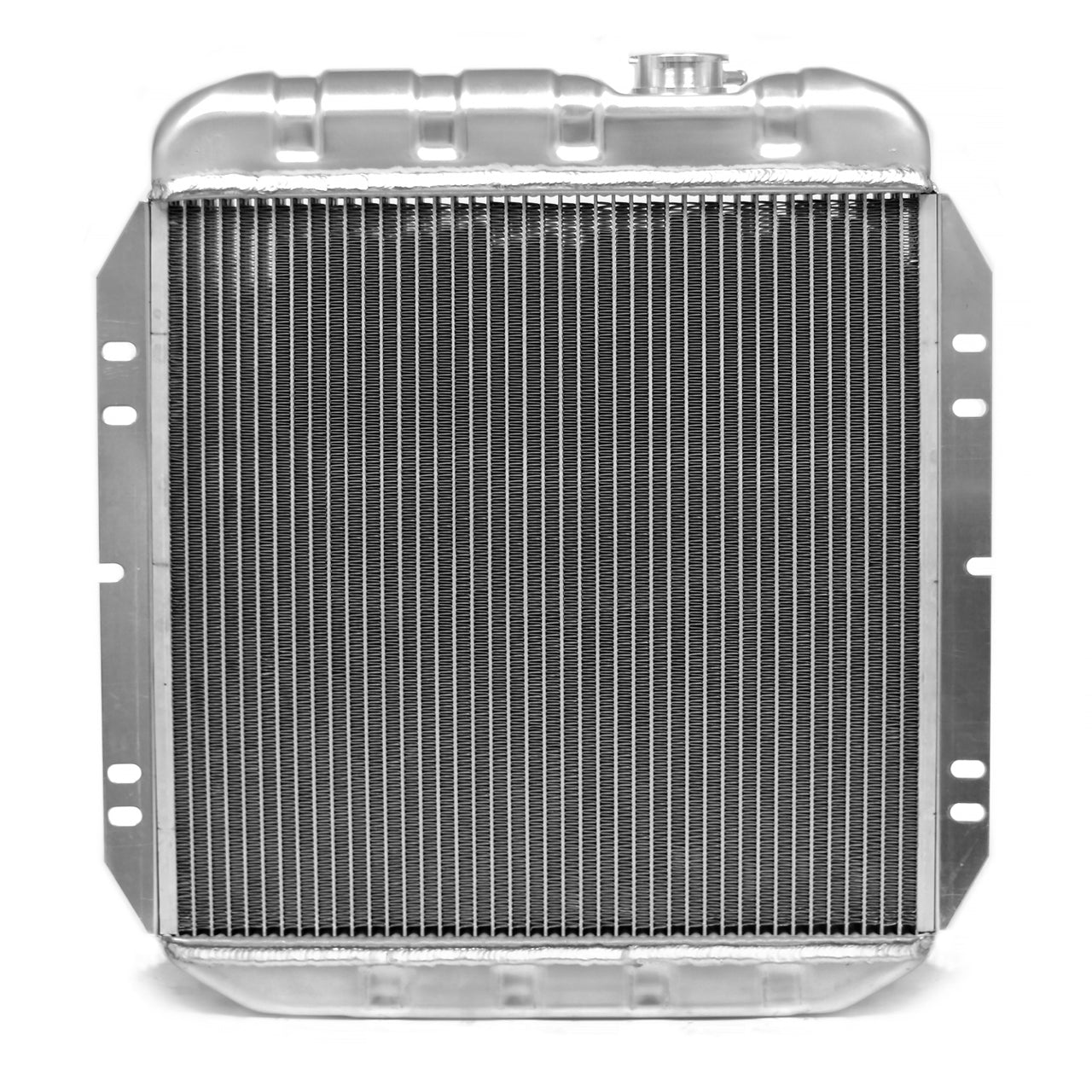

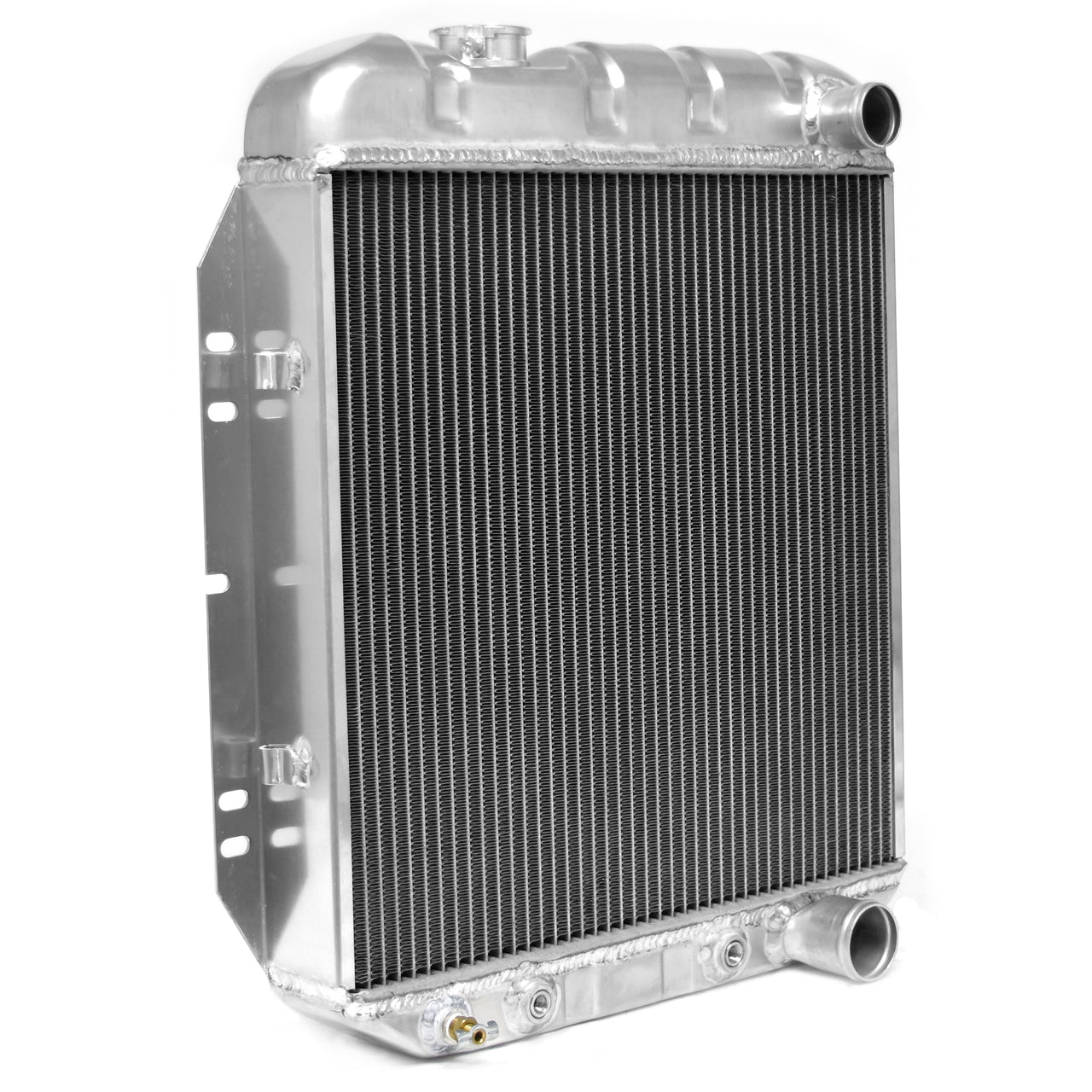

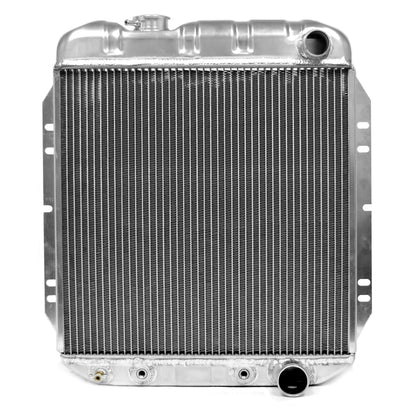

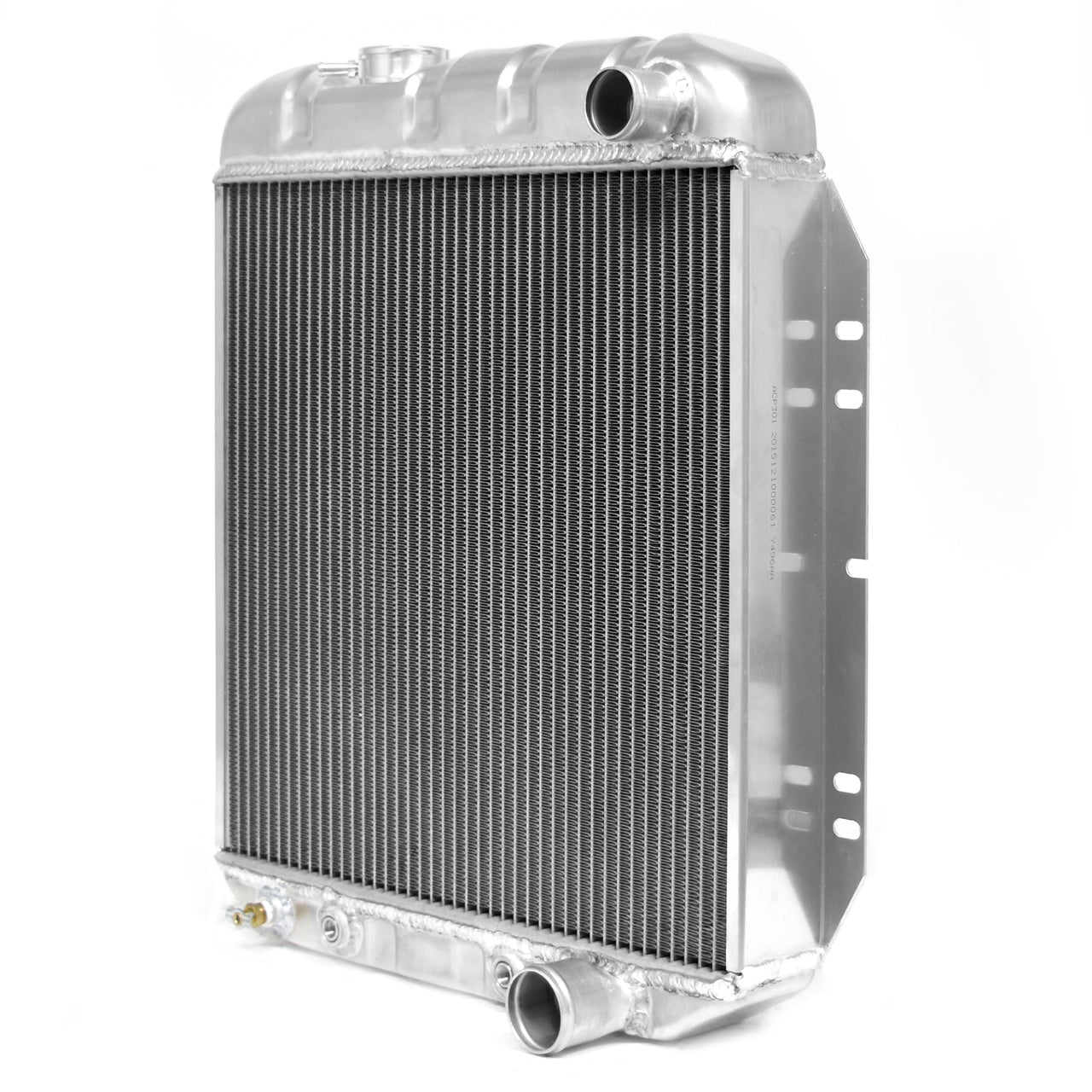

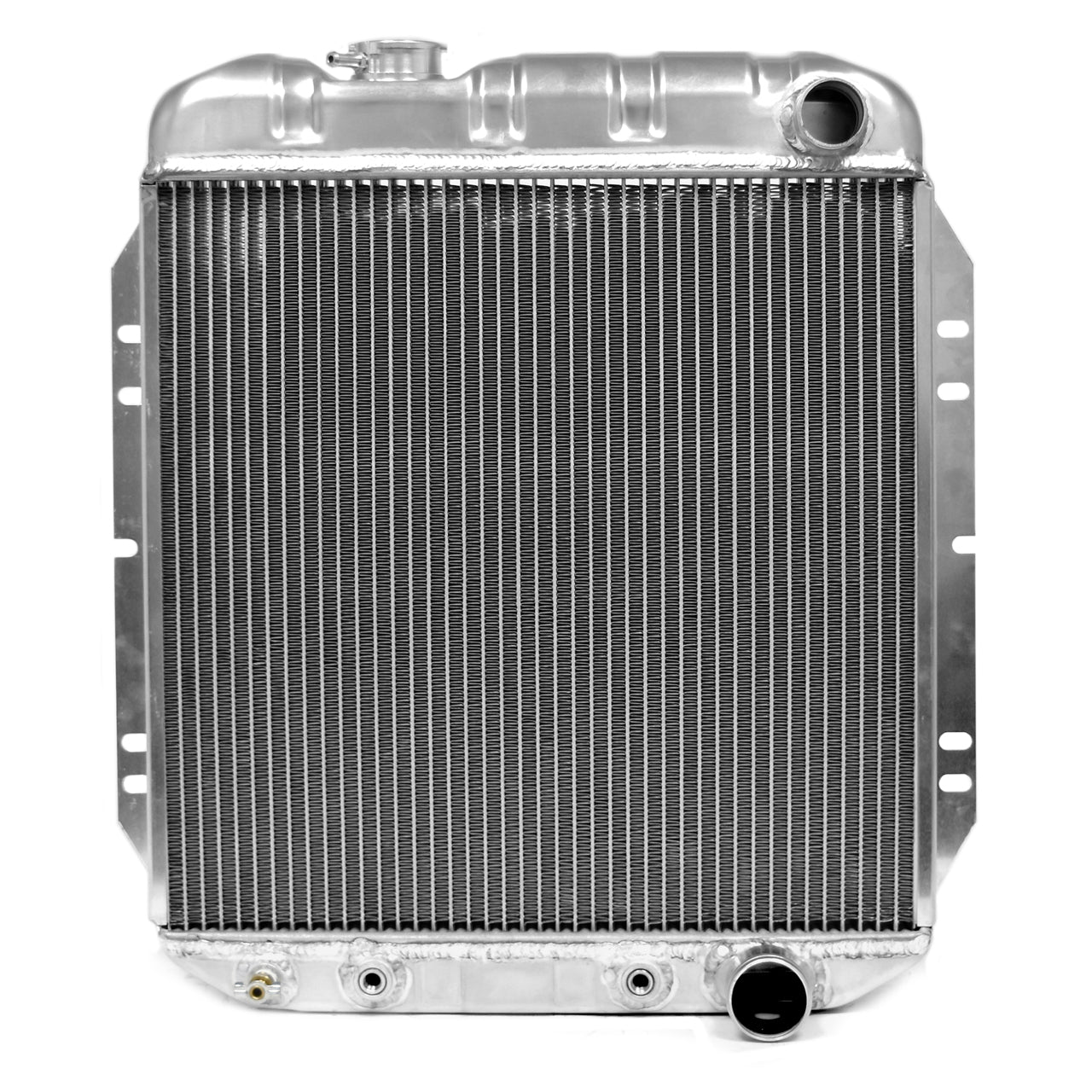

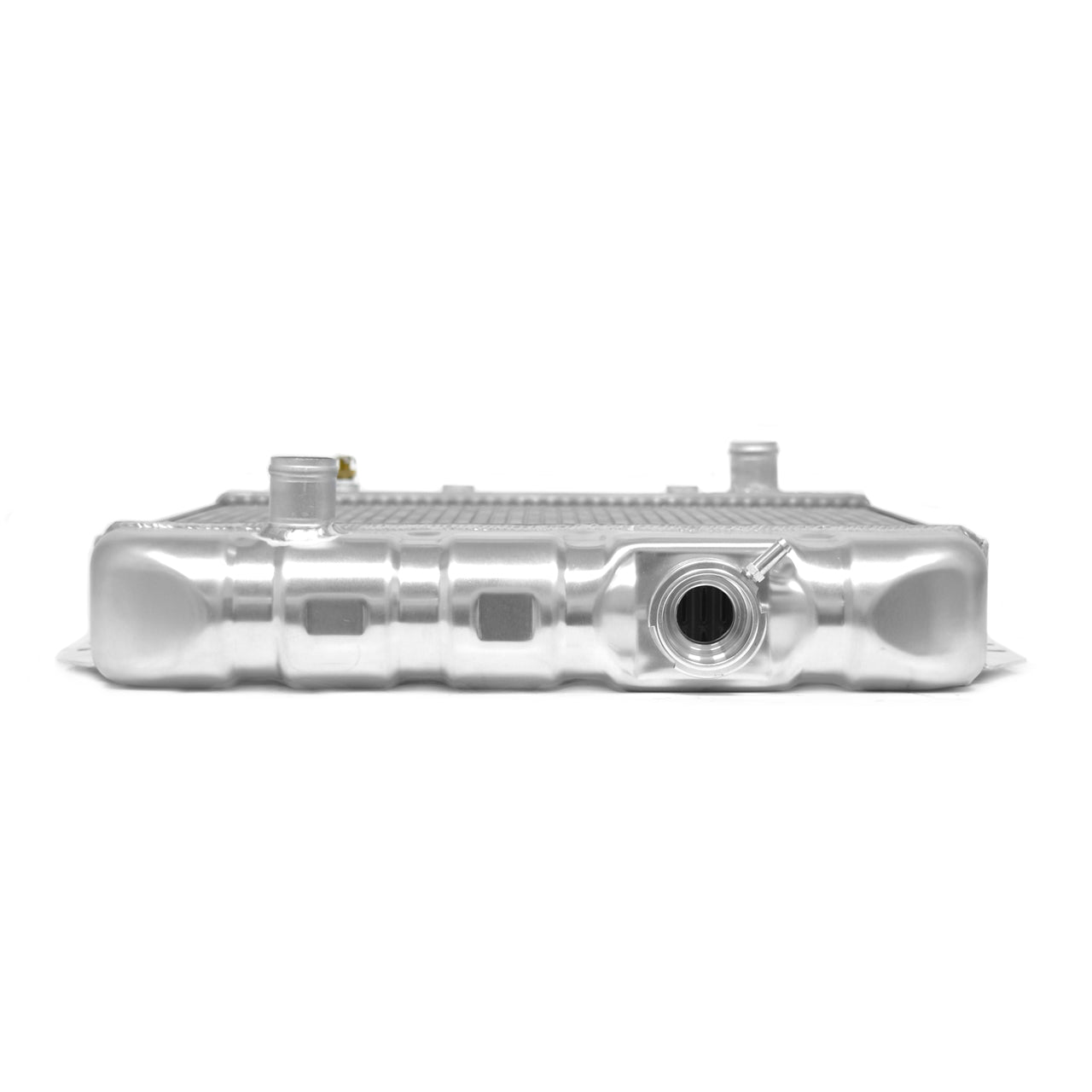

Upgrade your 1964.5-1966 Ford Mustang with this 17-inch, 3-row aluminum radiator designed for classic Mustangs equipped with a 260 or 289 V8 engine. Built with three 0.75-inch cores, OE-style tanks, and premium aluminum construction, it delivers improved cooling performance while keeping your early Mustang engine bay clean, classic, and factory-inspired.
-
Improved Cooling Performance: 3-row aluminum design helps increase coolant flow and heat transfer for classic V8 applications.
-
Expanded Core Design: Three 0.75-inch cores maximize tube size for better flow and dependable cooling efficiency.
-
Built for 260 / 289 V8 Mustangs: Designed for 1964.5-1966 Ford Mustang models equipped with small-block V8 engines.
-
17-Inch Radiator Fitment: Sized for early Mustang cooling system applications using the 17-inch radiator configuration.
-
Premium Aluminum Construction: High-quality aluminum provides excellent strength, reduced weight, and corrosion resistance.
-
OE-Style Tank Appearance: Factory-inspired tanks help preserve a clean, classic Mustang engine bay look.
-
Fully TIG-Welded Durability: Precision TIG-welded seams support long-term reliability under heat and pressure.
-
Billet Filler Neck: Adds a strong, premium detail to one of the radiator’s most frequently serviced points.
This aluminum performance radiator is a strong cooling upgrade for 1964.5-1966 Mustang owners who want improved performance with a classic presentation. Its 3-row design uses three 0.75-inch cores to expand coolant flow and help improve heat dissipation, making it a dependable choice for restored drivers, weekend cruisers, and small-block V8 builds that need more capable temperature control than a worn original radiator can provide.
The OE-type tanks allow this radiator to blend naturally into an early Mustang engine bay, giving you a factory-inspired appearance with the advantages of modern aluminum construction. Premium aluminum materials provide excellent high-pressure strength and corrosion resistance, while the fully TIG-welded build and billet filler neck add durability in key areas. It is a clean, confidence-inspiring upgrade for supporting the look, function, and drivability of your classic Mustang project.
Upgrade your early Mustang with 3-row aluminum cooling, OE-style tanks, TIG-welded strength, and classic V8 confidence.
| Product Fitment |
| Make |
Ford |
| Model |
Mustang |
| Year Range |
1964.5-1966 |
| Engine Fitment |
260 / 289 V8 |
| Radiator Size |
17 inch |
| Application |
Classic Mustang cooling system upgrade or replacement |
| Product Specs |
| Product Type |
Aluminum Radiator |
| Radiator Style |
Performance Radiator with OE-Type Tanks |
| Row Count |
3-Row |
| Core Configuration |
3 x 0.75-inch cores |
| Core Size |
17 inch |
| Core Design |
3-row 0.75-inch core design for expanded flow and improved cooling |
| Material |
Premium Aluminum |
| Tank Style |
OE-Type Tanks |
| Construction |
Fully TIG Welded |
| Filler Neck |
Billet Filler Neck |
| Dimensions |
25 in. L x 8 in. W x 22 in. H |
| Approximate Weight |
17 lb. |
