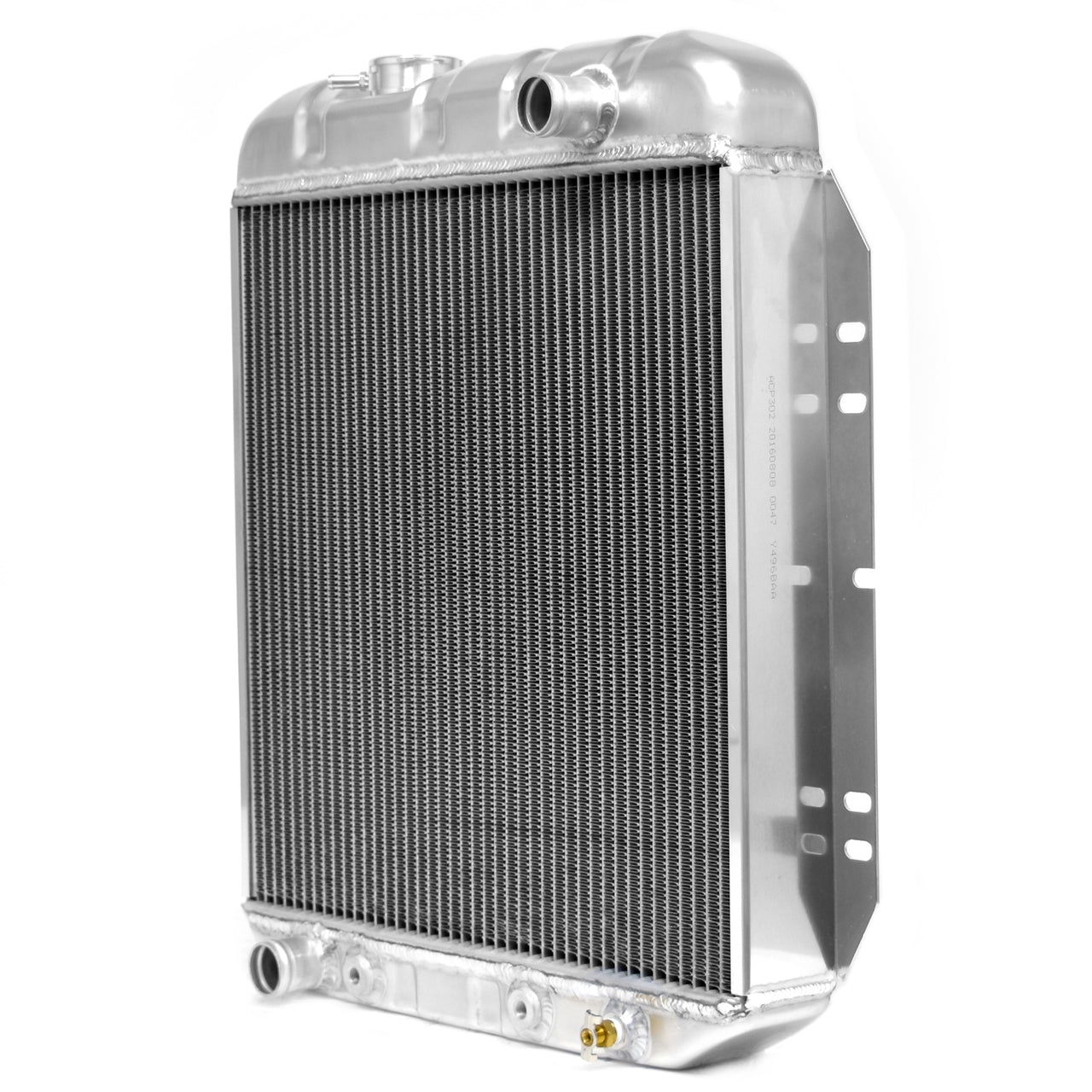

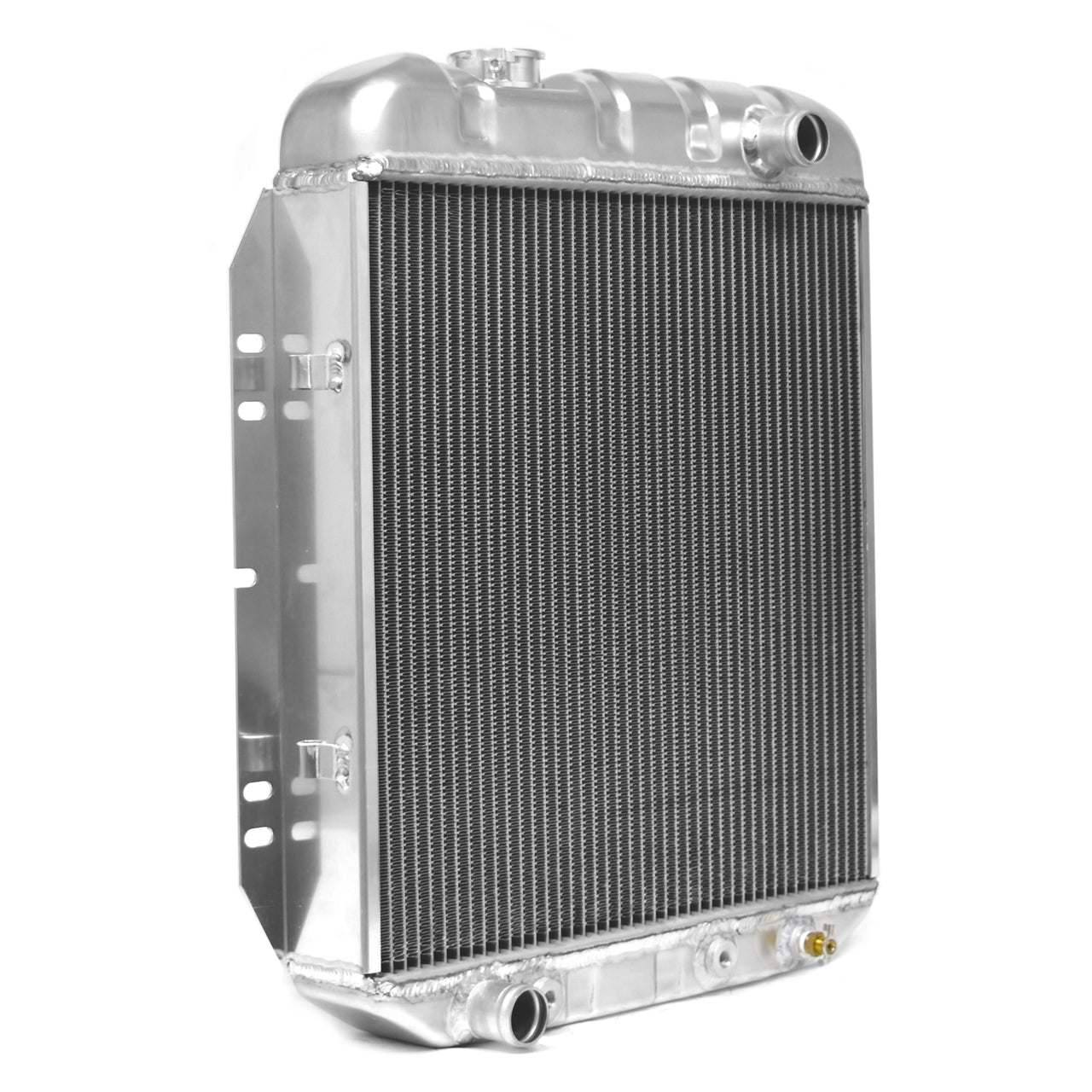

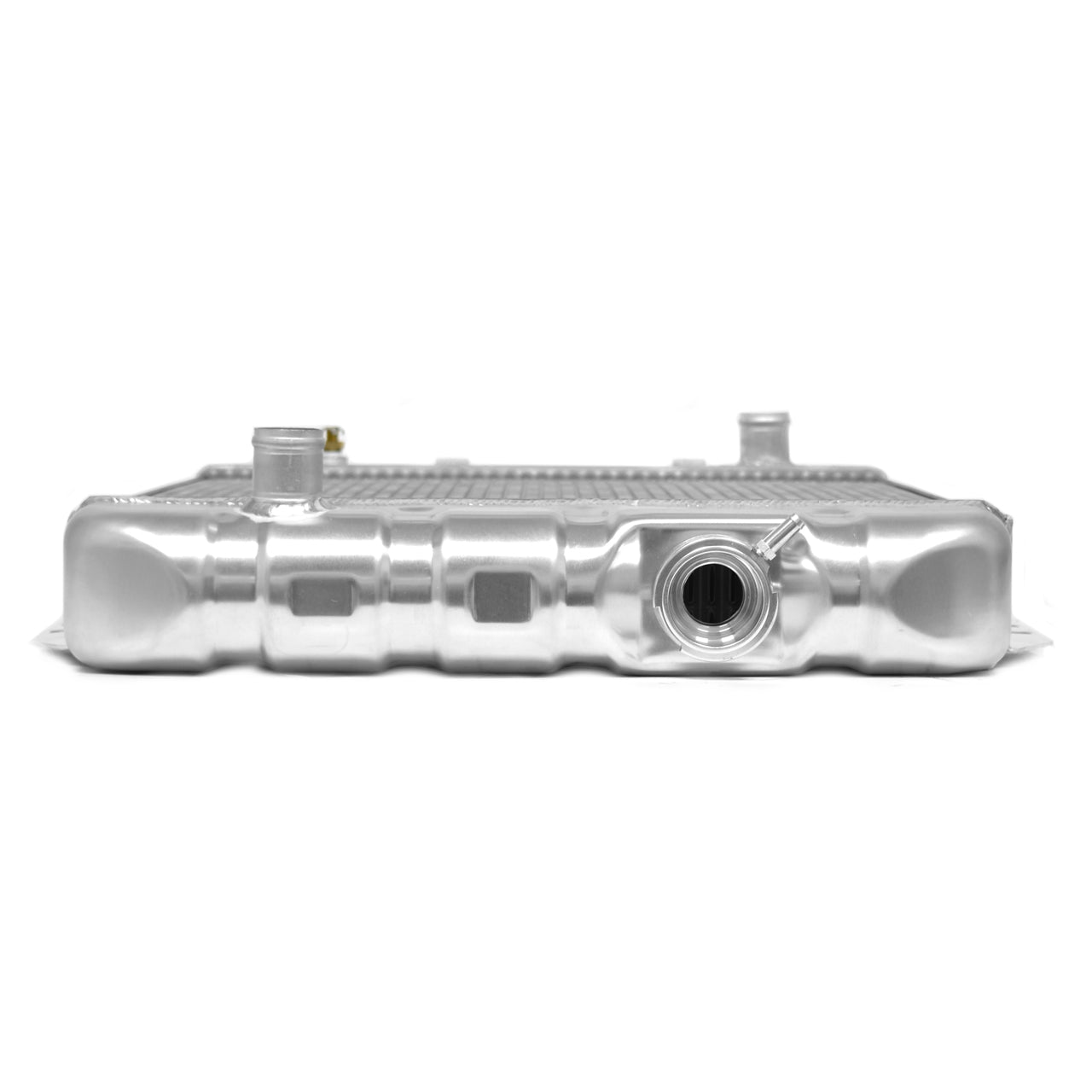

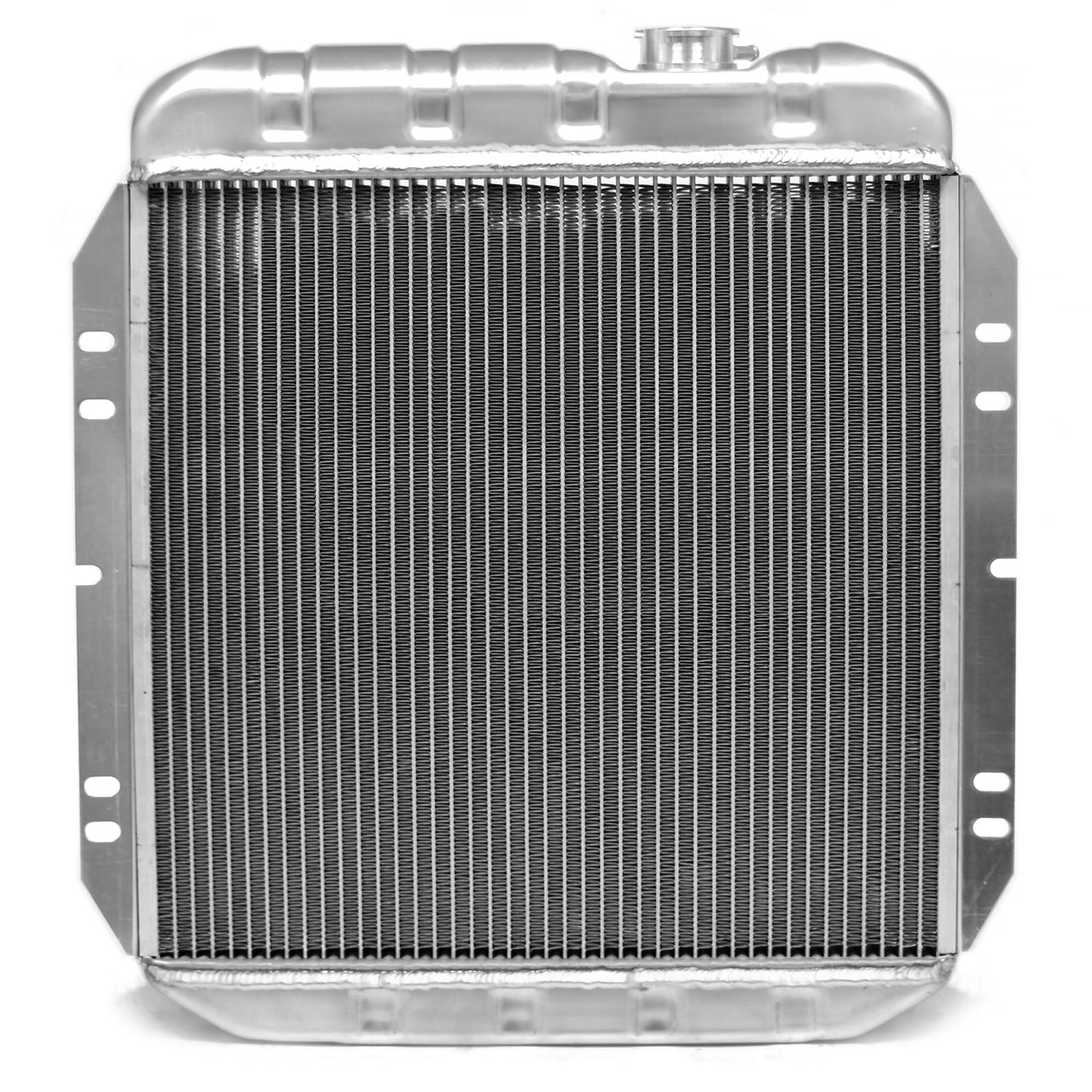

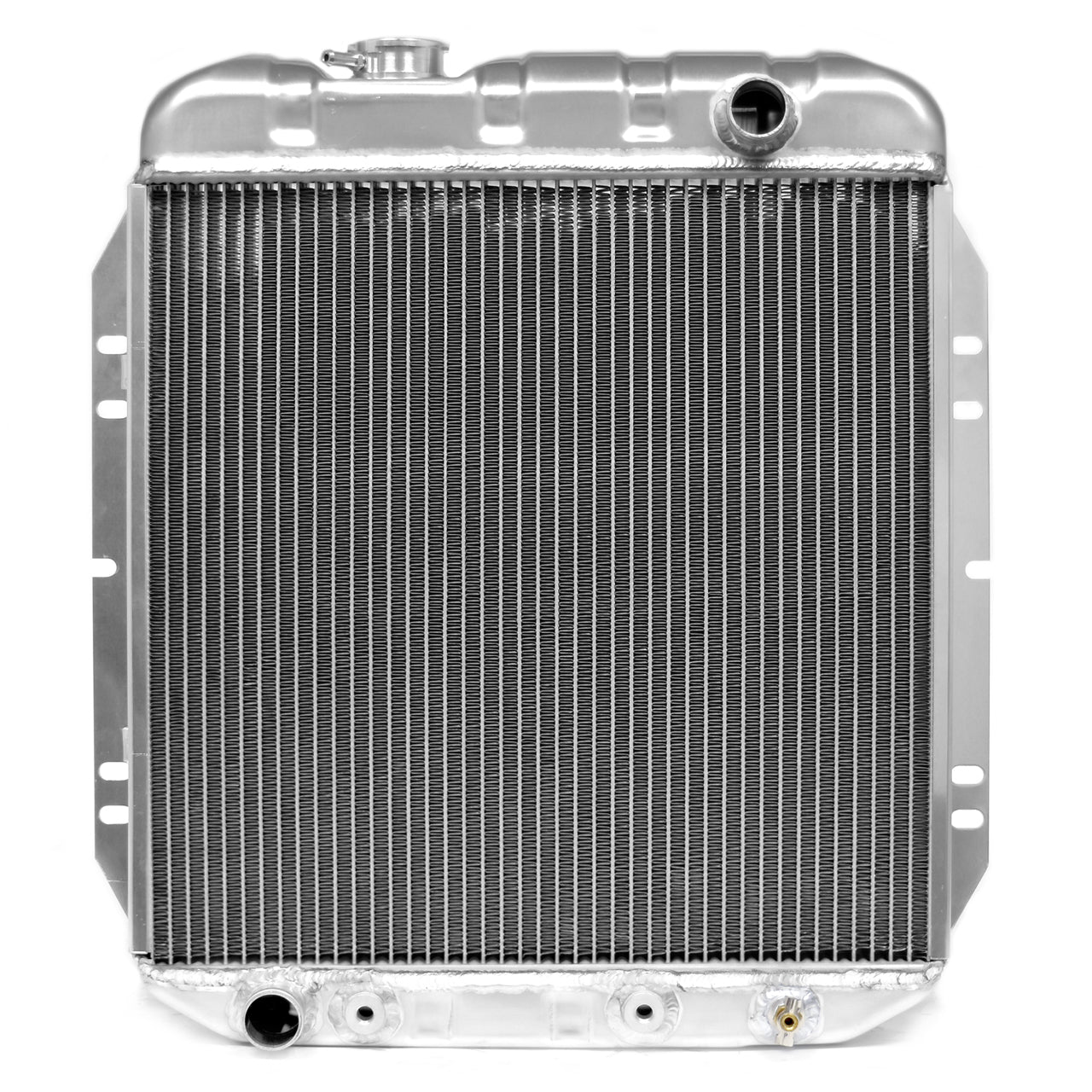

Upgrade your 1964.5-1966 Ford Mustang 170 or 200 6-cylinder with a premium 17-inch, 2-row aluminum radiator. Designed with a left-hand outlet, oversized 1.25-inch cores, OE-type tanks, TIG-welded construction, and a billet filler neck, it delivers serious cooling performance while keeping your early Mustang engine bay clean, classic, and factory-inspired.
-
Early 6-cylinder Mustang fitment: Fits 1964.5-1966 Ford Mustang models equipped with 170 or 200 6-cylinder engines.
-
Also supports Ford 144: Suitable for compatible Ford 144 applications where this radiator configuration is required.
-
Correct outlet configuration: Features a left-hand outlet type for proper application-specific fitment.
-
Serious cooling performance: 2-row performance design uses oversized 1.25-inch tubes for strong coolant flow and heat transfer.
-
Premium aluminum construction: Quality aluminum provides excellent high-pressure strength, corrosion resistance, and reduced weight.
-
OE-style appearance: Performance radiator design with OE-type tanks helps preserve a clean, classic engine bay look.
-
Durable welded design: Fully TIG welded construction with a billet filler neck supports long-term reliability.
This 17-inch aluminum radiator is a strong upgrade for 1964.5-1966 Mustang owners running a 170 or 200 6-cylinder engine. Its 2-row performance core uses large 1.25-inch tubes to increase coolant flow and improve heat dissipation, giving your early Mustang dependable cooling support for cruising, restoration work, and regular street driving.
The premium aluminum construction offers modern strength, corrosion resistance, and lighter weight, while the OE-type tanks help the radiator blend naturally into your classic Mustang engine bay. Fully TIG-welded seams and a billet filler neck add durability and a clean, high-quality finish, making this a confidence-inspiring cooling upgrade for your early Ford.
Give your early 6-cylinder Mustang oversized-core aluminum cooling, OE-style looks, and TIG-welded reliability in one clean upgrade.
| Product Fitment |
| Make |
Ford |
| Model |
Mustang |
| Year Range |
1964.5-1966 |
| Engine Fitment |
170 / 200 6-Cylinder |
| Additional Engine Note |
Also Ford 144 applications where compatible |
| Outlet Location |
Left Hand Outlet |
| Radiator Size |
17 inch |
| Application |
Early Mustang 6-cylinder cooling system upgrade or replacement |
| Product Specs |
| Product Type |
Aluminum Radiator |
| Radiator Style |
Performance Radiator with OE-Type Tanks |
| Row Count |
2-Row |
| Core Design |
2-row 1.25-inch performance core design for strong cooling flow and heat transfer |
| Core Size |
17 inch |
| Material |
Premium Aluminum |
| Tank Style |
OE-Type Tanks |
| Construction |
Fully TIG Welded |
| Filler Neck |
Billet Filler Neck |
| Dimensions |
25 in. L x 8 in. W x 22 in. H |
| Approximate Weight |
17 lb. |
